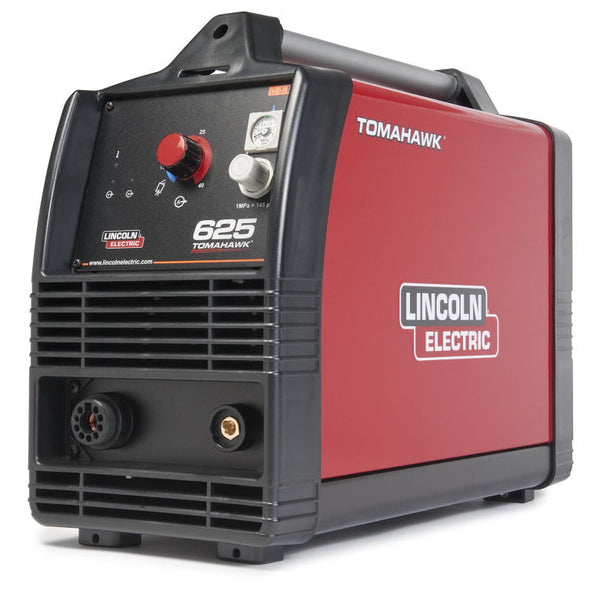

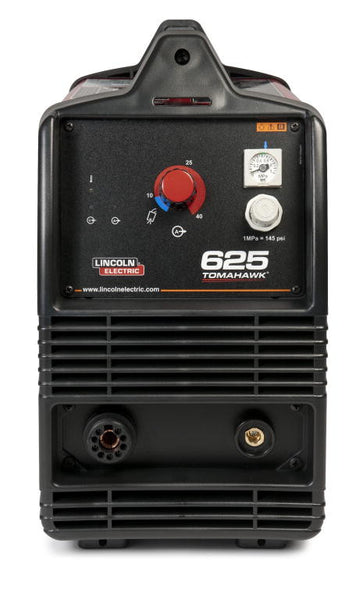

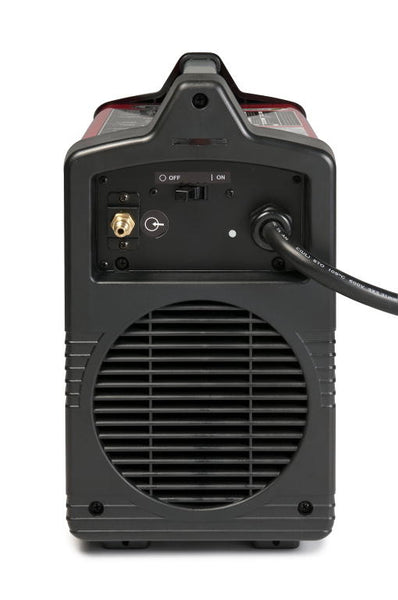

Lincoln K2807-1 Tomahawk® 625 Plasma Cutter with Hand Torch

$ 2,125.00

Lincoln K2807-1 Tomahawk® 625 Plasma Cutter with Hand Torch





PLASMA CUTTING - ANYWHERE, ANYTIME


Tomahawk®  plasma cutting system are portable enough to carry to any jobsite. Hook up the compressed air, grab the torch and start cutting right away.



Input Power:

  • 208/230/1/50/60



Processes:

  • Plasma cutting for mild steel, stainless steel, aluminum, brass, copper



Features & Benefits





CONTINUOUS OUTPUT CONTROL

  • Focus the arc for different material thickness


TORCH START SYSTEM

  • Reliable plasma arc initiation without high frequency



RAPID ARC RESTRIKE

  • Fast cutting through gaps, even expanded metal



FRONT PANEL PURGE CONTROL

  • Makes it easy to set the air flow rate without initiating the plasma arc



COOL OPERATION, LONG CONSUMABLE LIFE

  • New electrode and nozzle design save you money in the long run



ADDED SAFETY

  • Lincoln's Parts-in-Place system detects correct installation of consumables and torch



LIGHTWEIGHT AND PORTABLE

  • Easily carried by one person



ENGINE DRIVE COMPATIBLE

  • Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations



Specifications



INPUT POWER 208/230/1/50/60
RATED OUTPUT 24A@89.6V 100%
29A@91.8V 60%
INPUT CURRENT 36.8A
OUTPUT RANGE 10-40A
DIMENSIONS (H X W X D) 15.2" x 8.5" x 18.9" (385 x 215 x 480 mm)
NET WEIGHT 34 lbs (15.42 kg)
PILOT CURRENT 17A
AIR PRESSURE REQUIRED 80 - 110 psi
(6 - 7.5 bar)
AIR FLOW RATE 70 psi @ 125 - 200 SCFH
5 Bar @ 80 Liters / min.





Included



  • LC40 hand torch and 20 ft. (6 m) cable with electrode, nozzle 40A, swirl ring, retaining cap (standard), drag spacer
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables include (2) electrodes, (2) nozzles 40A, (1) swirl ring
  • Shoulder strap
  • Input power cord



Accessories



 CATEGORY PRODUCT NUMBER PRODUCT NAME
General K2886-1 Lincoln Tomahawk Plasma Circle Cutting Guide
General K2377-1 Lincoln Canvas Welder Cover - Small
General KP2843-1 Lincoln Tomahawk 625 LC40 Plasma Electrode
General KP2843-2 Lincoln Tomahawk 625 LC40 40A Plasma Nozzle
General KP2843-3 Lincoln Tomahawk 625 LC40 40A Plasma Contact Nozzle
General KP2843-10 Lincoln Tomahawk 625 LC40 25A Plasma Spacer



Power Sources



PRODUCT NUMBER PRODUCT NAME
K2857-1 Lincoln Ranger® 225 Engine Drive Welder
K2382-4 Lincoln Ranger® 250 GXT Engine Drive Welder
K1727-4 Lincoln Ranger® 305 D Final Engine Driven Welder (Kubota®)
