  • Lincoln K3520-1 POWER MIG® 260 MIG Welder

Lincoln K3520-1 POWER MIG® 260 MIG Welder

$ 3,199.00

Quantity


Pin It

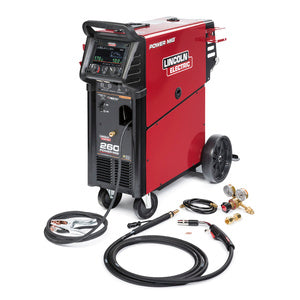

Lincoln K3520-1 POWER MIG® 260 MIG Welder





The POWER MIG® 260 welding machine sets the standard for MIG and Flux-Cored welding in light industrial shop fabrication, maintenance, and repair work. The seven inch color display with automatic controls make setup and operation intuitive simple. The POWER MIG® 260 welder offers superior welding performance and multitude of professional features.



Processes

  • MIG
  • Flux-Cored



Applications

  • General Fabrication
  • Maintenance and Repair
  • Farm/Autobody





SIMPLIFIED

  • Visualize Your Welding with ArcFX™ Technology
  • Ready.Set.Weld® Quick Set-Up
  • Automatic Settings - Provide Optimal Weld Parameters
  • Universal Input Voltage



INNOVATIVE

  • 7 inch Color Display
  • Memory Capability
  • Auto Calibration Optimizes Push-Pull Aluminum Performance



ERGONOMIC

  • Easy to View and Adjust Settings
  • Tilting Gas Bottle Tray
  • Front Access to 115V Outlet and Gun Connections
  • Small Footprint



ADVANCED FEATURES

  • Automatic settings provide optimal weld parameters
  • Memory Capability - Ability to load and save weld settings
  • Run-in - Adjustable speed at which wire strikes the plate to enhance starting
  • Burnback - Adjustable time delay between turning off the arc and the wire feed to prevent wire sticking to the puddle
  • Spot Timer - Adjustable arc time for repetitive tack and spot welds





INPUT POWER 208/230/460/575/1/60
RATED OUTPUT 250A/26.5V/40%
INPUT CURRENT 59/55/27/21
OUTPUT RANGE 30-300A
WIRE FEED SPEED RANGE 50-700
DIMENSIONS (H x W x D) 37.3" x 18" x 40.4" (947.42 mm x 457.2 mm x 1026.16 mm)
NET WEIGHT 247.00 (112.04 kg)





  • Maxtrac® Wire Drive
  • Magnum® PRO 250L Welding Gun
  • Quick Storage Accessories
  • 10 ft Work Cable with Clamp
  • Gas Regulator
  • 10 ft Power Cable with Plug





 CATEGORY PRODUCT NUMBR PRODUCT NAME
General K466-6 Lincoln Gun Connector Kit
General  KP44-3545-25 Lincoln Cable Liner .035" - .045", 25 ft
General KP1695-035A Lincoln Drive Roll Kit .035"
General  KP1695-3/64A Lincoln Drive Roll Kit 3/64A
General KP4395-1 Lincoln 7 inch Replacement Lens
General K4396-1 Lincoln Welder Tool Holder
General  K3667-1 Lincoln Spool Gun Holder
General K3675-1 Lincoln Welder Canvas Cover
General KP1697-035C Lincoln .030" - .035" Cored Wire Drive Roll Kit
General KP1697-045C Lincoln .040" - .045" Cored Wire Drive Roll Kit
