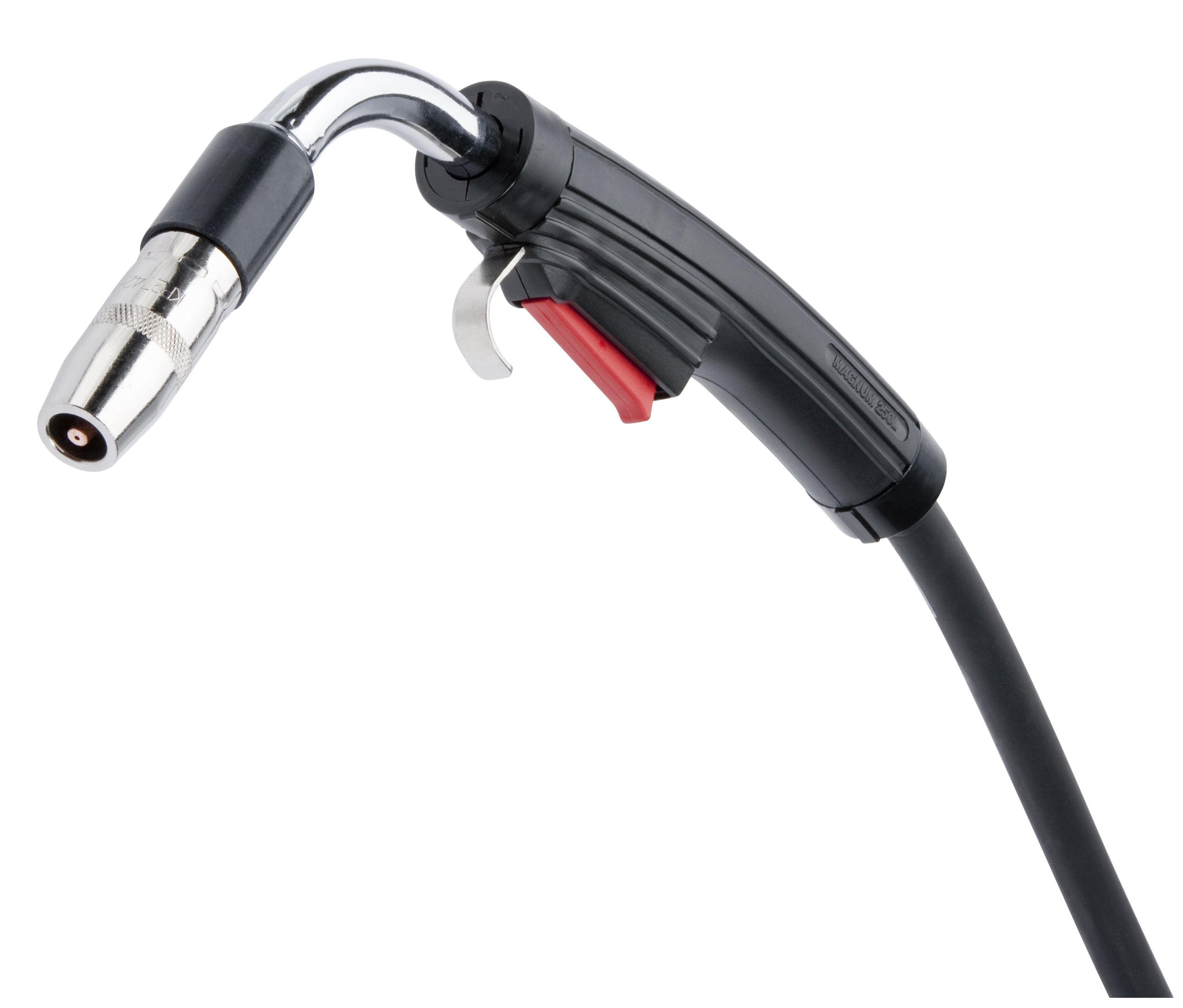

Lincoln K4530-2 Magnum® PRO 250L Welding Gun, 15 ft

$ 465.00 $ 481.00

Lincoln K4530-2 Magnum® PRO 250L Welding Gun, 15 ft





Product Description



Lincoln K4530-2 Magnum® PRO 250L Welding Gun, 15 ft




This gun replaces the old Magnum 250 MIG K3081-2



The Magnum PRO 250L is the most durable gun of the Magnum Pro L-series family. With sufficient amperage for bigger jobs, the Magnum Pro 250L is recommended for medium duty job shop and production applications.



      Processes

      • MIG, Pulsed MIG, Flux-Cored



      Wire Diameter Range

      • .025" - .045" (0.6 - 1.2 mm)



      Features & Benefits



      PREMIUM TIP PERFORMANCE

      • The large mass of Magnum Pro Copper Plus™ contact tips help disperse heat, keeping tips cooler and expanding their life
      • The Anti-Seize™ threads prevent tips from seizing in the diffuser



      COMFORTABLE GRIP

      • The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun


      100% DUTY CYCLE

      • The 175L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs



      CHROME PLATED GUN TUBE

      • The chrome plating prevents spatter from adhering to the gun tube, making it last longer


      Specifications



      RATED AMPERAGE 250
      CABLE LENGTH  15 ft
      WIRE DIAMETER .025" - .045" (0.6 - 1.2 mm)
      NET WEIGHT 6.27 lb (2.84 kg)
      DUTY CYCLE AT RATED AMPERAGE 100%



      Included



      • Contact Tip KP2744-035T
      • Contact Tip KP2744-045T
      • 1/2" (12.7 mm) Thread-On Gas Nozzle Flush (KP2742-1-50F)
      • Thread-on Diffuser (KP2746-1)
      • Gun Liner (KP42-4045-15)
      • Integrated Gun Connector



      Contact Tips



      PRODUCT NUMBER PRODUCT NAME
      KP2744-025 Lincoln .025" Copper Plus 350A Contact Tip
      KP2744-025T Lincoln .025" Copper Plus 350A Tapered Contact Tip
      KP2744-030 Lincoln .030" Copper Plus 350A Contact Tip
      KP2744-030T Lincoln .030" Copper Plus 350A Tapered Contact Tip
      KP2744-035 Lincoln .035" Copper Plus 350A Contact Tip
      KP2744-035T Lincoln .035" Copper Plus 350A Tapered Contact Tip
      KP2744-040 Lincoln .040" Copper Plus 350A Contact Tip
      KP2744-040T Lincoln .040" Copper Plus 350A Tapered Contact Tip
      KP2744-045 Lincoln .045" Copper Plus 350A Contact Tip
      KP2744-045T Lincoln .045" Copper Plus 350A Tapered Contact Tip



      Nozzles



      PRODUCT NUMBER PRODUCT NUMBER
      KP2742-1-38R Lincoln 3/8" Thread-On 1/8" Recessed 350A Nozzle
      KP2742-1-38F Lincoln 3/8" Thread-On 1/8" Flush 350A Nozzle
      KP2742-1-38S Lincoln .375" Thread-On Stickout Nozzle
      KP2742-1-50R Lincoln 1/2" Thread-On 1/8" Recessed 350A Nozzle
      KP2742-1-50F
      Lincoln 1/2" Thread-On Flush 350A Nozzle
      KP2742-1-50S Lincoln 1/2" Thread-On Stickout Nozzle
      KP2742-1-62R Lincoln 5/8" Thread-On 1/8" Recessed 350A Nozzle
      KP2742-1-62F Lincoln 5/8" Thread-On Flush 350A Nozzle
      KP2742-1-62S Lincoln 5/8" Thread-On Stickout Nozzle



      Diffusers



      PRODUCT NUMBER  PRODUCT NAME
      KP2746-1 Lincoln Magnum Pro 250L Gas Diffuser



      Insulators



      PRODUCT NUMBER PRODUCT NAME
      KP2773-2 Lincoln 250A/350A Insulator for Magnum Pro Guns



      Liners



      PRODUCT NUMBER PRODUCT NAME
      KP42-25-15 Lincoln .025" - .035" Cable Liner, 15 ft
      KP42-3035-15 Lincoln .030" - .035" Cable Liner, 15 ft
      KP42-4045-15 Lincoln .035" - .045" Cable Liner, 15 ft
      KP44N-3545-15 Lincoln .035 - 3/64" Aluminum Cable Liner, 15 ft



      Gun Tubes



      PRODUCT NUMBER PRODUCT NAME
      KP3078-60 Lincoln 60° Gun Tube for Magnum Pro 250L
      KP3078-45 Lincoln 45° Gun Tube for Magnum Pro 250L
