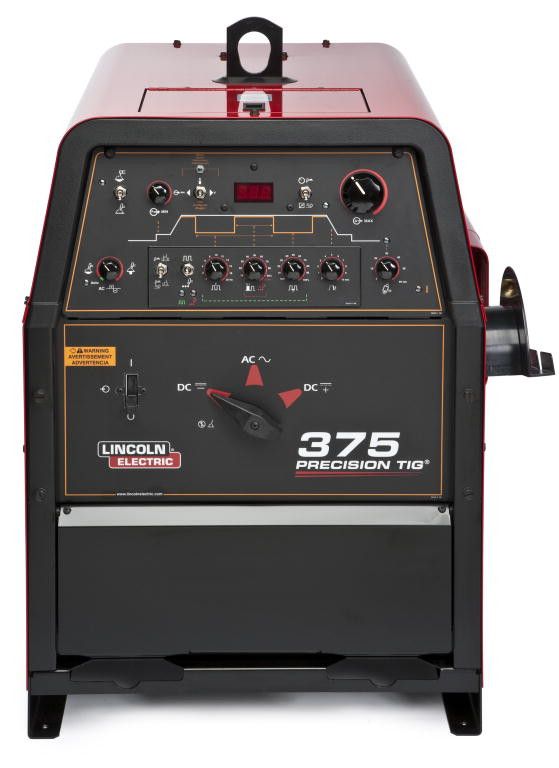

Lincoln K2622-2 Precision TIG 375 TIG Welder 230/460/575/1/60

$ 11,204.00

Lincoln K2622-2 230/460/575/1/60 Precision TIG 375 TIG Welder





SIMPLICITY, CONTROL AND RANGE



When it's time for thicker materials and heavier jobs, choose the Precision TIG® 375, which provides for the highest duty cycle in its class. The Precision TIG 375 also features a built-in TIG pulser, that can be activated to help control heat input in the weld and reduce distortion and burn-through on thin materials. The Precision TIG 375 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.



Input Power

  • 230/460/575/1/60

Processes

  • Stick, TIG



Features & Benefits



SIMPLICITY THROUGH TECHNOLOGY

  • AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on aluminum
  • Take full control - adjust AC Balance® to increase or decrease cleaning action or penetration on aluminum



ADVANCED PULSE CONTROL PANEL (STANDARD ON THE PRECISION TIG 375)

  • Enable the TIG pulser to minimize material distortion from excessive heat input
  • The TIG pulser can also help moderate metal deposition for consistent bead appearance



WIDE OUTPUT RANGE

  • Tackle either end of the material thickness spectrum with an amperage range of 2 to 420 amps



SIDE-MOUNTED TORCH HOLDER AND CONNECTIONS

  • Enables simple cable management and protection, and a place for your torch when not in use



Specifications



INPUT POWER 230/460/575/1/60
RATED OUTPUT 40% Duty Cycle with PFC: 102/51/41A
60% Duty Cycle: 92/46/37A
INPUT CURRENT 102/51/41A with PFC
OUTPUT RANGE 2-420A AC
2-420A DC
Max OCV: 80V
DIMENSIONS (H X W X D) 31" x 22" x 26" (787 x 559 x 660 mm)
NET WEIGHT 507 lbs (229.98 kg)





Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K1869-1 Lincoln Undercarriage for Precision TIG 275/375
Stick K704 Lincoln Accessory Kit - 400 Amp
Stick K857 Lincoln Remote Output Control - 25 ft
Stick K857-1 Lincoln Remote Output Control - 100 ft
TIG K4217-1 Lincoln Wireless Pedal for TIG Welding
TIG K963-3 Lincoln Hand Amptrol Rotary Track Style, 6 Pin (25 ft)
TIG K870 Lincoln Foot Amptrol, 6-Pin (25 ft)
TIG K814 Lincoln Arc Start Switch
TIG K2166-3 Lincoln PTA-9, -17 One-Cable Adapter
TIG K2166-2 Lincoln PTA-9, -17, -26 Two-Cable Adapter
TIG K2166-1 Lincoln PTA-26 One-Cable Adapter
TIG K1828-1 Lincoln Under-Cooler Cart Water Cooler
TIG K918-2 Lincoln 22' Zippered Cable Cover
TIG K918-1 Lincoln 10' Zippered Cable Cover
TIG K1784-2 Lincoln PTW-18 TIG Torch - 25 ft
TIG
K1784-3 Lincoln PTW-20 TIG Torch - 12.5 ft
TIG K1784-1 Lincoln PTW-18 TIG Torch - 12.5 ft
TIG K1784-4 Lincoln PTW-20 TIG Torch - 25 ft
TIG K1782-4 Lincoln PTA-17 TIG Torch (25 ft, 2 PC)
TIG K1782-3 Lincoln PTA-17 TIG Torch (25 ft, 1 PC)
TIG K1783-4 Lincoln PTA-26 TIG Torch (25 ft, 2 PC)
TIG K1783-3 Lincoln PTA-26 TIG Torch (25 ft, 1 PC)
TIG KP508 Lincoln PTA-17 TIG Torch Consumable Kit
TIG KP510 Lincoln PTW-20 TIG Torch Consumable Kit
TIG KP509 Lincoln PTA-26 and PTW-18 TIG Torch Consumable Kit
