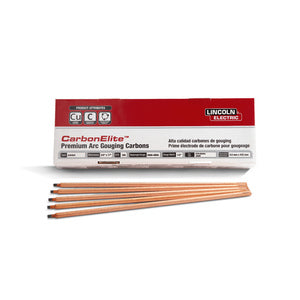

Lincoln KP3803 CarbonElite™ Jointed Gouging Electrodes (100 Pack)
$ 269.69
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln KP3803 CarbonElite™ Jointed Gouging Electrodes (100 Pack) 16LB PER BOX
ELITE PERFORMANCE
CarbonElite™ arc gouging carbon electrodes are made of proprietary composition to deliver high efficiency metal removal. The copper coated carbon's offer excellent arc stability and generate less heat for a controlled melt off rate. Available in pointed, jointed, flat and hollow electrode types for use in numerous semi-automatic or automatic applications.
- Premium synthetic graphite composition extends electrode life to maximize metal removal
- Full copper coating improves arc stability and reduces heat generation
- Consistent melt-off rate for smooth, uniform grooves
- High density formula increases durability
Typical Applications:
- Used primarily in automatic gouging applications but can be used manually
- Large, long duration gouges commonly seen in the shipbuilding or foundry industries
- Circular gouges on pipe and tanks
| TYPICAL OPERATING PROCEDURES - JOINTED CARBONS | |||
| DIAMETER (MM) | CURRENT RANGE (AMPS) | POLARITY / CURRENT TYPE | AIR PRESSURE* (PSI) |
| 3/8" (9.5) | 450 - 600A | DC+ ; CC/CV | 80 psi |
| 1/2" (13.0) | 800 - 1000A | DC+ ; CC/CV | 60 - 100 psi |
| 5/8" (16.0) | 1000 - 1250A | DC+ ; CC/CV | 60 - 100 psi |
| 3/4" (19.0) | 1250 - 1600A | DC+ ; CC/CV | 60 - 100 psi |
| *Air pressure psi could vary depending on torch, carbon electrode and movement method | |||
