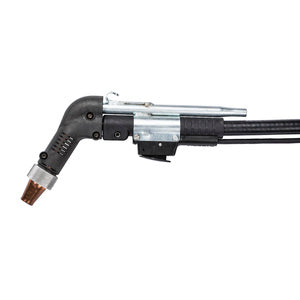

Lincoln K113-1 600A Submerged Arc Welding Gun 564, 15 ft
$ 1,949.67
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K113-1 600A Submerged Arc Welding Gun 564, 15 ft
Lincoln Submerged arc guns are robust and built to last. A simple compact design makes them durable and easy to maintain.
Processes:
- Submerged Arc
Wire Diameter Range:
- 5/64" (2.0 mm)
Features & Benefits
- Lincoln Submerged arc guns are robust and built to last
- A simple and compact design makes them durable and easy to maintain
Specifications
| RATED AMPERAGE | 600 |
| GUN TYPE | Handheld |
| CABLE LENGTH | 15 ft |
| WIRE DIAMETER | 5/64" (2.0 mm) |
| COOLING | Air Cooled |
| DIMENSIONS (H X W X D) | 4.38" x 18.25" x 24" (111.3 x 463.6 x 609.6 mm) |
| NET WEIGHT | 16 lbs (7.26 kg) |
Accessories
| PRODUCT NUMBER | PRODUCT NAME |
| K447 | Lincoln Gun and Cable Adapter Kit |
| KP1968-3 | Lincoln Nozzle Flux Cone 15/16" Opening for Sub-Arc Gun |
| KP1968-4 | Lincoln Nozzle Flux Cone 3/4" Opening for Sub-Arc Gun |
| KP1968-5 | Lincoln Nozzle Flux Cone 5/8" Opening for Sub-Arc Gun |
| K119 | Lincoln Flux Cone |
| KP2086-2B1 | Lincoln Contact Tip 1/16", 5/16" Long, 18 Thread |
| KP2086-4B1 | Lincoln Contact Tip 5/64", 5/16" Long, 18 Thread |
| KP2094-2 | Lincoln Insert Ceramic Gun/Nozzle Tubes |
| KP2095-1 | Lincoln Liner Spring .113" Inner Diameter .240" Outer Diameter 5.94" |
