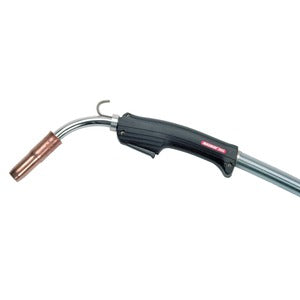

Lincoln K470-4 Magnum® 300 Welding Gun, .052" - 1/6" Liner (15 ft)

$ 495.00
By Lincoln Electric

Lincoln K470-4 Magnum® 300 Welding Gun, .052" - 1/6" Liner (15 ft)





SEMIAUTOMATIC GAS-SHEILDED GUNS



Magnum® guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications.

  • Requires Gun Connector Kit



Processes

  • MIG, Flux-Cored Gas-Shielded


Wire Diameter Range

  • .025" - 5/64" (0.6 - 2.0 mm)



Features and Benefits



POPULAR MAGNUM® GUN

  • Intended for most .035" - .045" (0.9 - 1.1 mm) wire diameter applications in job, shops, production or manufacturing


ONE-PIECE MODULAR TRIGGER ASSEMBLY

  • Molded out of high heat resistant material to withstand head and spatter and ensure long life



GUN TUBE DESIGN

  • Armored with an electrically insulated metal jacket optimizing fine wire welding performance



ABRASION-RESISTANT, EXTRUDED RUBBER JACKET

  • Adds strength and long life to the cable



CLASSIC CURVED HANDLE

  • Lightweight and balance, providing a comfortable grip to reduce fatigue



ROTATING GUN TUBE AND GUN HANGER CLIP

  • Allow any number of hand positions to reduce fatigue or fit into tight spaces


Specifications



DUTY CYCLE AT RATED AMPERAGE 60
RATED AMPERAGE 300
GUN TYPE Handheld
CABLE LENGTH 15 ft (4.5 m)
WIRE DIAMETER .025" - 5/64" (0.6 - 2.0 mm)
COOLING Air Cooled
NET WEIGHT 9.51 lbs (4.31 kg)



Included



  • Contact Tip
  • Gas Diffuser
  • Gas Nozzle
  • Insulator
  • Cable Liner
  • Gun Tube (60°)



Accessories


CATEGORY PRODUCT NUMBER PRODUCT NAME
General K466-1 Lincoln LN-7-8-9 & LN-25 Series Connector Kit
General K466-10 Lincoln LF-72-74, LN-25 Pro, Power Feed 25M Connector Kit
General K466-2 Lincoln Tweco No. 2, No. 3, No. 4 Gun Connector Kit
General K466-6 Lincoln Power MIG & Power Wave C300 Gun Connector Kit
General K466-8 Lincoln LN-8-9-1/16 & Larger Gun Connector Kit
General K466-3 Lincoln Miller Feed Gun Connector Kit



Contact Tips



PRODUCT NUMBER PRODUCT NAME
KP14-25 Lincoln .025" Contact Tip
KP14T-25 Lincoln .025" Tapered Contact Tip
KP14-30 Lincoln .030" Contact Tip
KP14T-30 Lincoln .030" Tapered Contact Tip
KP2010-3B1 Lincoln .030" Notched Contact Tip
KP14-35 Lincoln .035" Contact Tip
KP14H-35 Lincoln .035" Heavy Duty Contact Tip
KP14T-35 Lincoln .035" Tapered Contact Tip
KP2010-4B1 Lincoln .035" Notched Contact Tip
KP14-40 Lincoln .040" Contact Tip
KP14H-40 Lincoln .040" Heavy Duty Contact Tip
KP14T-40 Lincoln .040" Tapered Contact Tip
KP14-45 Lincoln .045" Contact Tip
KP14H-45 Lincoln .045" Heavy Duty Contact Tip
KP14T-45 Lincoln .045" Tapered Contact Tip
KP14A-364 Lincoln 3/64" Contact Tip
KP14AH-364 Lincoln 3/64"A Heavy Duty Contact Tip
KP2010-5B1 Lincoln 3/64" Notched Contact Tip
KP14-52 Lincoln .052" Contact Tip
KP14H-52 Lincoln .052" Heavy Duty Contact Tip
KP14T-52 Lincoln .052" Tapered Contact Tip
KP14-116 Lincoln 1/16" Contact Tip
KP14H-116 Lincoln 1/16"A Heavy Duty Contact Tip
KP14T-116 Lincoln 1/16" Contact Tip
KP14-564 Lincoln 5/64" Contact Tip
KP14H-564 Lincoln 5/64" Heavy Duty Contact Tip



Nozzles



PRODUCT NUMBER PRODUCT NAME
KP24A-37-SS Lincoln .375" Slip-On Recess Gas Nozzle
KP23-37 Lincoln .38" Fixed Recess Gas Nozzle
KP23T-37 Lincoln .38" Fixed Tapered Gas Nozzle
KP24A-50 Lincoln .50" Adjustable Slip-On Gas Nozzle
KP24A-50-SS Lincoln .50" Slip-On Recess Gas Nozzle
KP23-50 Lincoln .50" Fixed Recess Gas Nozzle
KP23-50F Lincoln .50" Flush Gas Nozzle
KP24A-62 Lincoln .62" Adjustable Slip-On Gas Nozzle
KP24A-62-SS Lincoln .62" Slip-On Recess Gas Nozzle
KP24CT-62-R Lincoln .62" Coarse Thread 1/4" Tip Recessed Nozzle
KP24CT-62-S Lincoln .62" Coarse Thread 1/8" Tip Recessed Nozzle
KP23-62 Lincoln .62" Fixed Recessed Gas Nozzle
KP23-62F Lincoln .62" Fixed Flush Gas Nozzle
KP23H-62 Lincoln .62" Fixed Heavy Duty Gas Nozzle
KP24CT-75-R Lincoln .75" Coarse Thread 1/4" Tip Recessed Gas Nozzle
KP24CT-75-S Lincoln .75" Coarse Thread 1/8" Tip Recessed Gas Nozzle
KP23-75 Lincoln .75" Fixed Recessed Gas Nozzle



Diffusers



PRODUCT NUMBER PRODUCT NAME
KP2024-2 Lincoln Gas Diffusers for Magnum 300 (.025" - .030" Liners)
KP54A Lincoln .025" - 5/64" Gas Diffuser for Magnum Gun



Insulators



PRODUCT NUMBER PRODUCT NAME
KP34A Lincoln Insulator for Adjustable Slip Nozzle
KP34CT Lincoln Coarse Thread Insulator Assembly



Liners



PRODUCT NUMBER PRODUCT NAME
KP42-25-15 Lincoln .025" - .030" Cable Liner (15 ft)
KP44-116-15 Lincoln .052" - 1/16" Cable Liner (15 ft)
KP44-116-25 Lincoln .052" - 1/16" Cable Liner (25 ft)
KP44-3545-15 Lincoln .035" - .045" Cable Liner (15 ft)
KP44-3545-25 Lincoln .035" - .045" Cable Liner (25 ft)
KP44-564-15 Lincoln 1/16" - 5/64" Cable Liner (15 ft)
KP44-564-25 Lincoln 1/16" - 5/64" Cable Liner (25 ft)
KP44N-116-15 Lincoln 1/16" Aluminum Cable Liner for Magnum 300 & 400 (15 ft)


Gun Tubes



PRODUCT NUMBER PRODUCT NAME
KP1928-2 Lincoln 60°, 300 Amp Gun Tube Assembly
KP1929-2 Lincoln 45°, 300 Amp Gun Tube Assembly
