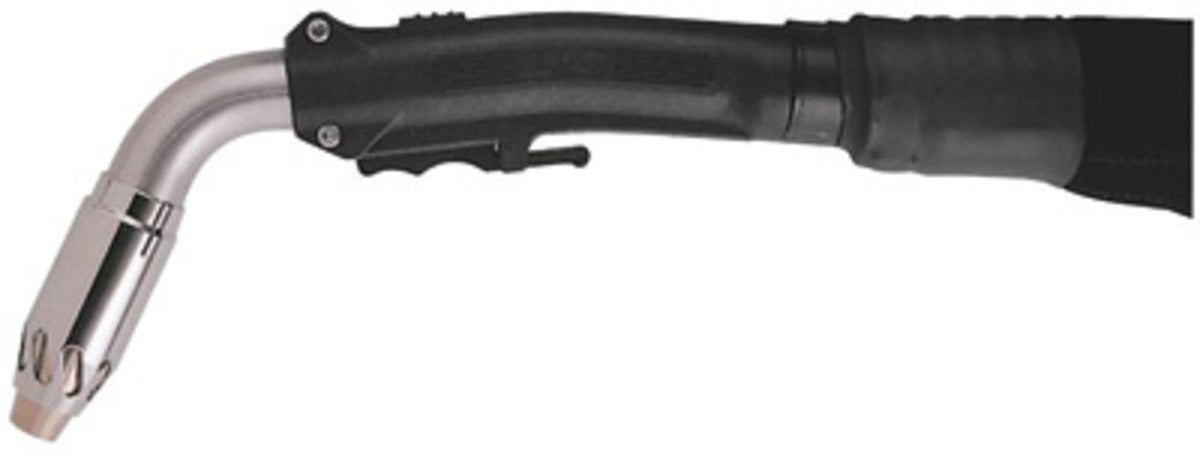

Tweco S215-4045 (1026-1102) Smoke Master® 250A Fume Extraction Air-Cooled MIG Gun - Tweco® Style

$ 1,676.00
By Tweco

Tweco S215-4045 (1026-1102) Smoke Master® 250A Fume Extraction Air-Cooled MIG Gun - Tweco® Style





Features:

  • Handle Slide Valve - allows the operator to regulate vacuum on the MIG gun
  • Efficiently Removes 90% of Smoke - from the welding zone
  • Surrounding Air - is drawn over the front end consumables and conductor tube to keep cool
  • Tough Outer Jacket - made from leather protecting inner vacuum hose from weld spatter/abrasion
  • Low Bench Weight - for easy to handle MIG gun
  • Spare Trigger  Leads in Cablehoz
  • Rugged & Durable Power Cablehoz® - with proven abrasion & heat resistance
  • Outer Metal Plated Insulated Smoke Tube
  • 1-3/8" (334.9 mm) Inside Diameter PVC Reinforced Vacuum Hose
  • Ergonomic Handle - to reduce operator fatigue
  • Extended Trigger Length - to reduce radiated heat



Standard Options Include:



  • Rear Connector
  • Standard Conductor Tube
  • Conduit Liner - 42 Series





PART NUMBER S215-4045
STOCK NUMBER 1026-1102
WELDING PROCESSES
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
APPLICATION USAGE Light to Medium Duty
AMPS 250 Amps
DUTY CYCLE 60%
GAS Carbon Dioxide
WIRE SIZE Up to .045" (1.2 mm)
COOLED Air
REAR CONNECTOR STYLE Tweco® Style
LENGTH 15 ft (4.6 m)





(Call for high usage quote - 641-201-1352)
