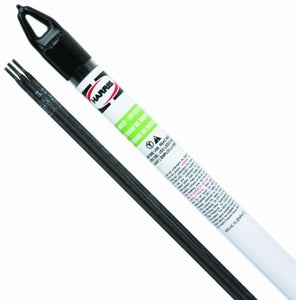

Harris NLW59500POP 3/32" NIC-L-Weld 59 Stick Electrodes (19 Electrode Tube)

$ 39.60
By Harris

Harris NLW59500POP 3/32" NIC-L-Weld 59 Stick Electrodes (19 Electrode Tube)





Nickel-Iron alloy electrode (AC-DC). A general purpose, nickel-iron electrode for production, salvage and repair of all cast irons.



  • Conforms to AWS A5.15, ENiFeCl
  • Close color match
  • Good machinability



Procedure:



  • Use AC or DC reverse polarity
  • Vee out cracks
  • Preheat heavy castings to approximately 400°F for best results
  • Direct the arc upon deposited metal with the electrode at a slight angle in the direction of travel
  • Lightly peen between passes and use a skip or back-step welding technique. Allow casting to cool slowly



Application:

  • NIC-L-WELD 59 is suited to joining, filing and buildup of gray and alloyed cast irons
  • It can be used for fabrication and repair of pump housings, valves, castings, cast and mallebale fittings, and for general repair of all cast irons
  • Deposits are machinable and have high strength



CLASSIFICATION CHEMICAL COMPOSITION
ENi-Cl C-2.0%     Mn-2.5%     Si-4.0%     S-0.03%     Ni-85min    Cu-2.5%   Fe-8.0%      Al-1.0%
ENi-Cl-A
C-2.0%     Mn-2.5%     Si-4.0%     S-0.03%     Ni-85min    Cu-2.5%   Fe-8.0%      Al-1.0-3.0%
ENiFe-Cl
C-2.0%     Mn-2.5%     Si-4.0%     S-0.03%    Ni-45-60%  Cu-2.5%   Fe-Rem       Al-1.0%
