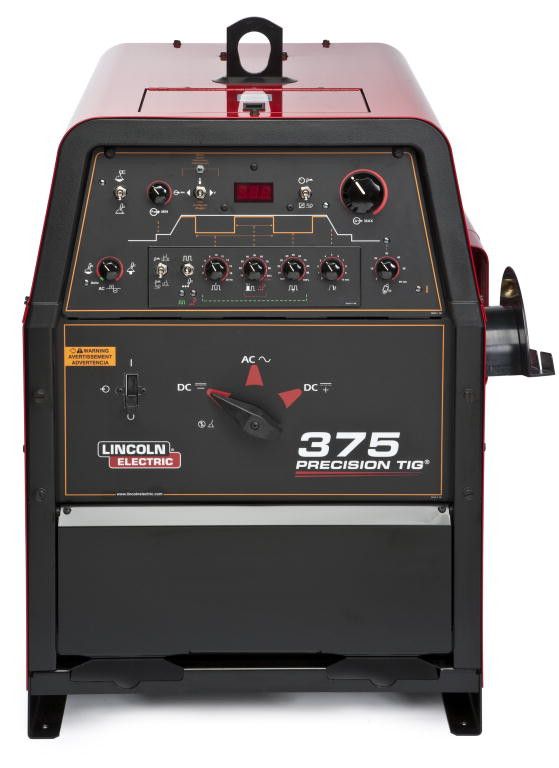

Lincoln K2622-1 Precision TIG® 375 TIG Welder
$ 10,402.00
Lincoln K2622-1 Precision TIG® 375 TIG Welder
SIMPLICITY, CONTROL AND RANGE
When it's time for thicker materials and heavier jobs, choose the Precision TIG® 375, which provides for the highest duty cycle in its class. The Precision TIG 375 also features a built-in TIG pulser, that can be activated to help control heat input in the weld and reduce distortion and burn-through on thin materials. The Precision TIG 375 features the patented Micro-Start™ II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.
Input Power
- 208/230/460/1/60
Processes
- Stick, TIG
SIMPLICITY THROUGH TECHNOLOGY
- AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on aluminum
- Take full control - adjust AC Balance® to increase or decrease cleaning action or penetration on aluminum
ADVANCED PULSE CONTROL PANEL (STANDARD ON THE PRECISION TIG 375)
- Enable the TIG pulser to minimize material distortion from excessive heat input
- The TIG pulser can also help moderate metal deposition for consistent bead appearance
WIDE OUTPUT RANGE
- Tackle either end of the material thickness spectrum with an amperage range of 2 to 420 amps
SIDE-MOUNTED TORCH HOLDER AND CONNECTIONS
- Enables simple cable management and protection, and a place for your torch when not in use
| INPUT POWER | 208/230/460/1/60 |
| RATED OUTPUT | 375A/40% 350A/60% |
| INPUT CURRENT | 40% Duty Cycle with PFC: 112/102/51A 60% Duty Cycle: 102/92/46A |
| OUTPUT RANGE | 2-420A AC 2-420A DC Max OCV: 80V |
| DIMENSIONS (H X W X D) | 31" x 22" x 26" (787 x 559 x 660 mm) |
| NET WEIGHT | 507 lbs (229.98 kg) |
