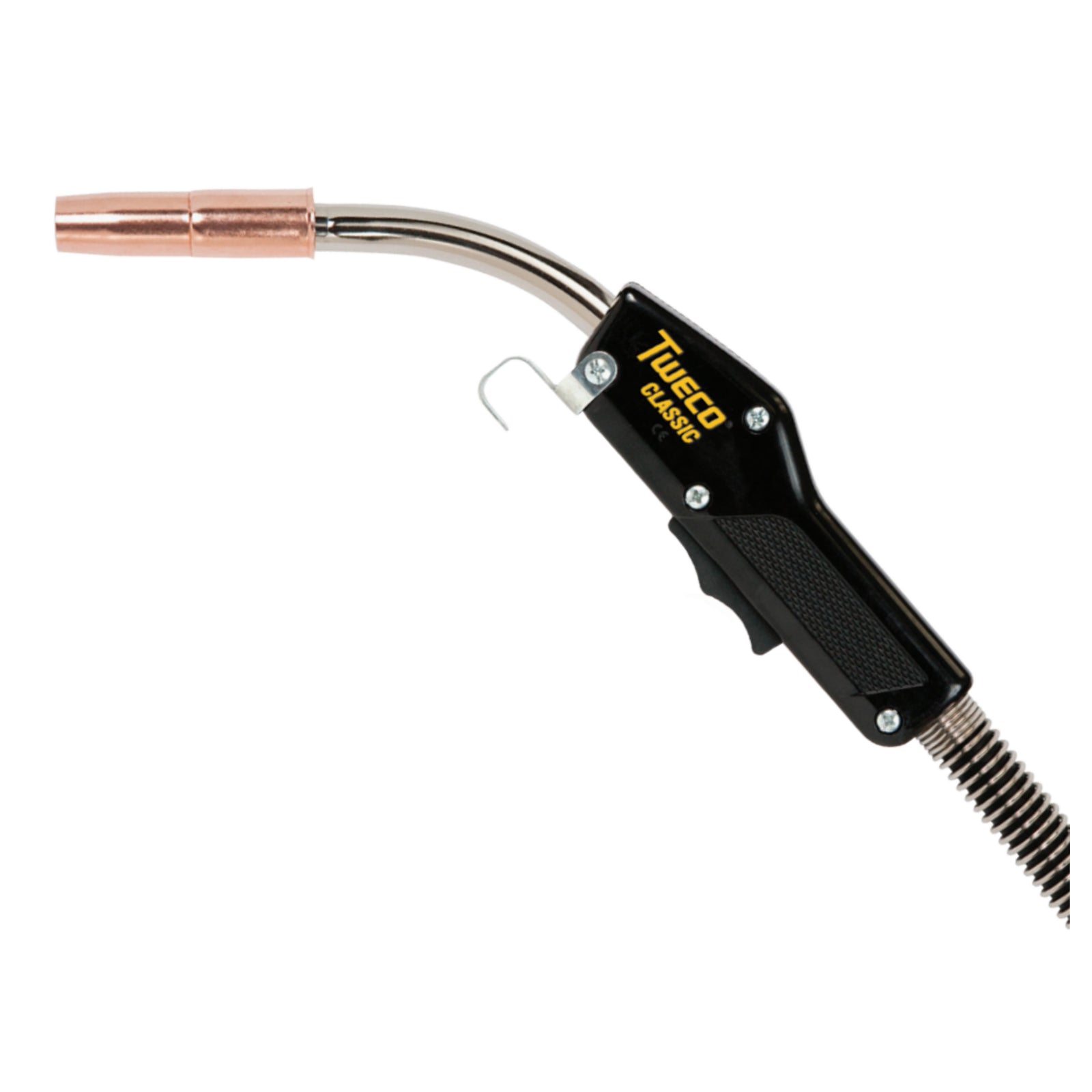

Tweco .035" Classic No. 4 400 Amp MIG Gun - Miller® Style

$ 717.00
By Tweco

Size

Tweco .035" Classic No. 4 400 Amp MIG Gun - Miller® Style





Features:



  • The Industry Standard - for over 40 years
  • Oval-Shaped Handle - reduces grip required to manipulate MIG gun and eases operator fatigue
  • High-Impact Crush-Resistant Handle - uses special plastic composition for long-lasting durability and dependability
  • Heavy Duty Handle - balanced to pivot at center for use in different welding positions
  • Metal Jacketed Three-Layer Conductor Tube Construction - (copper tube/silicon-resin glass insulator/metal jacket) for improved electrical conductivity
  • Trigger Contains Silver Plated Contacts - with self-cleaning action every time it is engaged or disengaged
  • Heavy Duty Design - for dependable industrial connectors
  • Field Repairable Cablehoz® - requires no additional connectors
  • Gun Hanger - located at bottom for convenience of resting the gun when not in use
  • Split Handle Case - provides access for easy repairs
  • Improved Performance - with longer life consumables
  • Wide Selection - of front end consumables available
  • Front and Rear Steel Spring Strain Relief  - provides support to their Cablehoz coming out of the rear of the handle and minimizes wire feed issues
  • Heavy Duty Contact Tips - in high heat applications offered
  • Interchangeable Front End Consumables - between Tweco® Classic No. and Tweco Spray Master®



Standard Options Include:



  • Rear Connector
  • Standard Connector Tube
  • Conduit Liner - 44 Series





PART NUMBER M410-3545 M412-3545 M415-3545 M420-3545 M425-3545
STOCK NUMBER 1040-1130 1040-1133 1040-1136 1040-1126 1040-1129
WELDING PROCESSES
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
APPLICATION USAGE Heavy Duty Heavy Duty Heavy Duty Heavy Duty Heavy Duty
AMPS 400 Amps 400 Amps 400 Amps 400 Amps 400 Amps
DUTY CYCLE 60% 60% 60% 60% 60%
GAS Carbon Dioxide Carbon Dioxide Carbon Dioxide Carbon Dioxide Carbon Dioxide
WIRE SIZE Up to .035" (0.9 mm) Up to .035" (0.9 mm) Up to .035" (0.9 mm) Up to .035" (0.9 mm) Up to .035" (0.9 mm)
COOLED Air Air Air Air  Air
REAR CONNECTOR STYLE Miller® Style Miller® Style Miller® Style Miller® Style Miller® Style
LENGTH 10 ft (3 m) 12 ft (3.6 m) 15 ft (4.6 m) 20 ft (6.1 m) 25 ft (7.6 m)





(Call for high usage quote - 641-201-1352)
