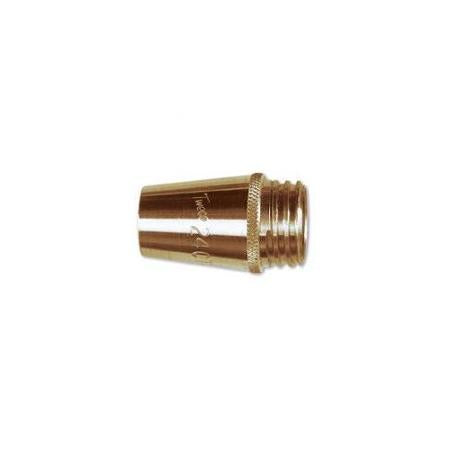

Tweco 24FN-62R (1240-1723) 24FN Series 1/2" Tapered Tip Recess Fine Thread Nozzle (2 Pack)
$ 33.36
Unit price
/
Unavailable
By Tweco
Couldn't load pickup availability
Tweco 24FN-62R (1240-1723) 24FN Series 1/2" Tapered Tip Recess Fine Thread Nozzle (2 Pack)
Professional & Weldskill 24 Series Air Cooled Nozzles offered in 2 Piece, coarse (CT) and fine thread (FN) series, as well as slip-on (A).
- 2-Piece Nozzle require 34FN insulator (Sold Separately)
(Call for high usage quote - 641-201-1352)
Features:
- Coarse Thread Nozzle
- Used in light to medium duty welding applications up to 400 amp
- Formed and 3-piece nozzle designs
- Easy identification - Part No. rolled stamped on the outside surface
- Tapered nozzle 3-piece design - does not require an additional insulator
- Nozzle threads onto the conductor tube
Specifications:
| PART NUMBER | 24FN-62R |
| MODEL | 1240-1723 |
| SERIES | 24FN |
| COOLING | Air |
| INSIDE DIAMETER | 5/8 (15.9 mm) |
| NOZZLE DESIGN | Tapered |
| NOZZLE STYLE | Fine Thread-On |
| NOZZLE/CONTACT TIP RELATIONSHIP | 1/2" (12.7 mm) |
| OUTSIDE DIAMETER | 0.750" (19.05 mm) |
Variants:
| PART NUMBER | MODEL | INSIDE DIAMETER | NOZZLE DESIGN | NOZZLE/CONTACT TIP RELATIONSHIP |
| 24FN-37S | 1240-1704 | 3/8" (9.5 mm) | Standard Short Stop | 5/32" (3.97 mm) Tip Recess |
| 24FN-50S | 1240-1714 | 1/2" (12.7 mm) | Standard Short Stop | 5/32" (3.97 mm) Tip Recess |
| 24FN-62R | 1240-1723 | 5/8" (15.9 mm) | Tapered | 1/2" (12.7 mm) Tip Recess |
| 24FN-62S | 1240-1724 | 5/8" (15.9 mm) | Standard Short Stop | 5/32" (3.97 mm) Tip Recess |
| 24FN-75S | 1240-1734 | 3/4" (19.1 mm) | Standard Short Stop | 5/32" (3.97 mm) Tip Recess |
