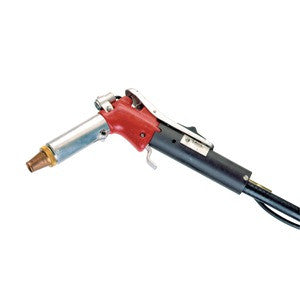

Lincoln K114 600A Mech Submerged Arc Welding Gun 564-332
$ 3,213.90
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K114 600A Mech Submerged Arc Welding Gun 564-332
Lincoln Submerged arc guns are robust and built to last. A simple compact design makes them durable and easy to maintain. Includes flux valve interlock switch and receptacle for Hand Travel Unit or Squirtmobile.
Processes:
- Submerged Arc
Wire Diameter Range:
- 5/64" - 3/32" (2.0-2.4 mm)
Features & Benefits
- Lincoln Submerged arc guns are robust and built to last
- A simple and compact design makes them durable and easy to maintain
- Includes flux valve interlock switch and receptacle for Hand Travel Unit or Squirtmobile
Specifications
| RATED AMPERAGE | 600 |
| GUN TYPE | Robotic/Mechanized |
| CABLE LENGTH | 15 ft |
| WIRE DIAMETER | 5/64" - 3/32" (2.0-2.4 mm) |
| COOLING | Air Cooled |
| DIMENSIONS (H X W X D) | 4.38" x 18.25" x 24" (111.3 x 463.6 x 609.6 mm) |
| NET WEIGHT | 15.93 lbs (7.23kg) |
Accessories
| PRODUCT NUMBER | PRODUCT NAME |
| K447 | Lincoln Gun and Cable Adapter Kit |
| KP1968-3 | Lincoln Nozzle Flux Cone 15/16" Opening for Sub-Arc Gun |
| KP1968-4 | Lincoln Nozzle Flux Cone 3/4" Opening for Sub-Arc Gun |
| KP1968-5 | Lincoln Nozzle Flux Cone 5/8" Opening for Sub-Arc Gun |
| KP2038-1 | Lincoln Magnum 100L Gun Tube Assembly, 60°, 100 Amp |
| KP2088-2B1 |
Lincoln Contact Tip 3/32", 3/8" Long, 16 Thread |
| KP2088-3B1 |
Lincoln Contact Tip 5/64", 3/8" Long, 16 Thread |
