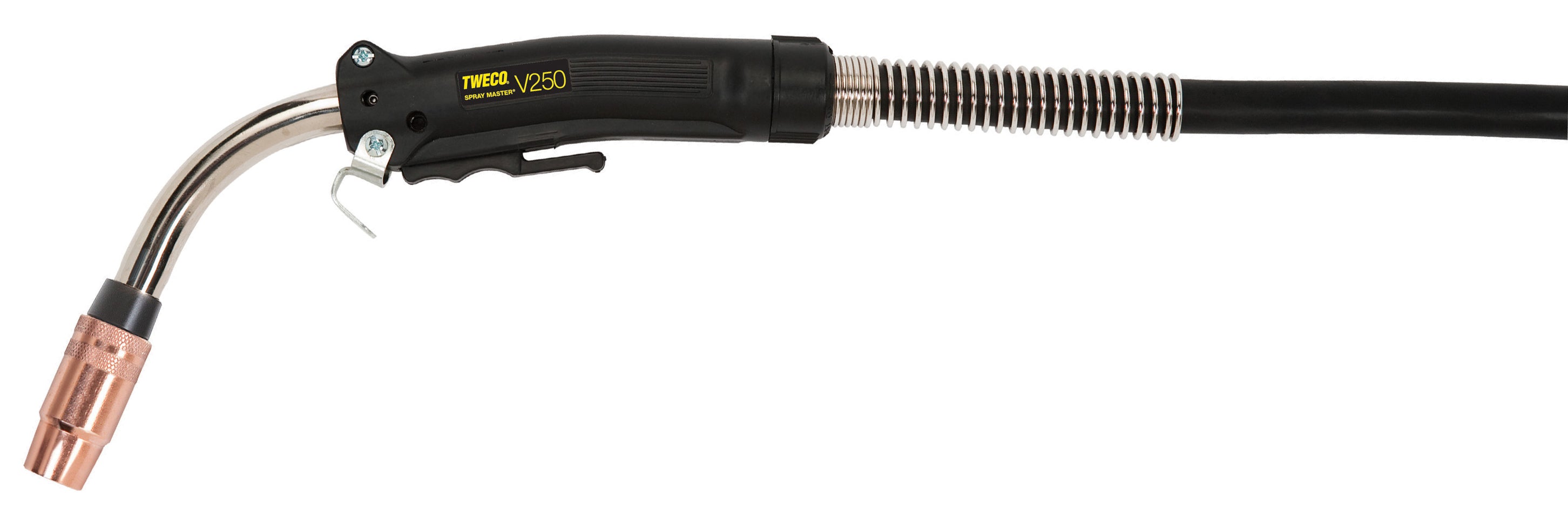

Tweco Spray Master® V250 Amp V-Series MIG Gun - Tweco® Style

$ 523.00
By Tweco

Size

Tweco Spray Master® V250 Amp V-Series MIG Gun - Tweco® Style





Features:



  • Velocity™ Consumables - with new ground-breaking innovation inspired by welders for welders
  • Solid Copper Conductor Path - with fewer connections for optimized electrical surface contact
  • Fewer Consumable Parts - mean less complexity and lower cost of ownership
  • Gas Ported Velocity Contact Tips - stay cooler and last longer
  • Extended Length Trigger - allows welders to adjust their grip for access, comfort and to avoid radiated heat
  • Easy to Use Velocity Tips - eliminates threads and requires no tools
  • Tips can be Rotated - to prolong life requiring fewer changes
  • Excellent Wire Feedability - with centered liner
  • Superior Welding Performance - from a smoother, more stable arc
  • Compact, Ergonomic Handle Design - is balance to pivot at the center of the handle for ease of use, thereby reducing operator fatigue
  • Front and Rear Steel Spring Relief - provides support to the Cablehoz® coming out of the rear of the handle and minimizes wire feed issues
  • Split Handle Case - provides access for ease of repairs in the field
  • Durable, Metal-Jacketed, Three-Layer Conductor Tube - rotates easily for different welding positions and lowers heat in the front end
  • Crimped Front Cablehoz Connection - for improved electrical conductivity
  • Designed for Spray and Pulse transfer modes - maintains the copper need for high duty cycle welding



Standard Options Include:



  • Rear Connector
  • Velocity Consumables
  • Conduit Liner - 42 Series



PART NUMBER SMV212-3545 SMV215-3545 SMV225-3545
STOCK NUMBER 1023-1276 1023-1277 1023-1279
WELDING PROCESSES
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Aluminum (GMAW)
APPLICATION USAGE Light/Medium Duty  Light/Medium Duty Light/Medium Duty
AMPS 250 Amps 250 Amps 250 Amps
DUTY CYCLE 80% 80% 80%
GAS Mixed Mixed Mixed
WIRE SIZE Up to .045" (1.2 mm) Up to .045" (1.2 mm) Up to .045" (1.2 mm)
COOLED Air Air Air
REAR CONNECTOR STYLE Tweco® Style Tweco® Style Tweco® Style
LENGTH 12 ft (3.6 m) 15 ft (4.6 m) 25 ft (7.6 m)





(Call for high usage quote - 641-201-1352)
