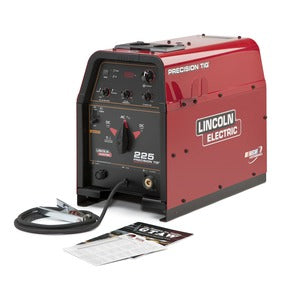

Lincoln K2533-2 Precision TIG® 225 TIG Welder

$ 4,531.00

Pin It

Lincoln K2533-2 Precision TIG® 225 TIG Welder

SIMPLE TO USE, EASY TO CUSTOMIZE

Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with out patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.

Features and Benefits:
Specifications:
Included:
Accessories:

SIMPLICITY

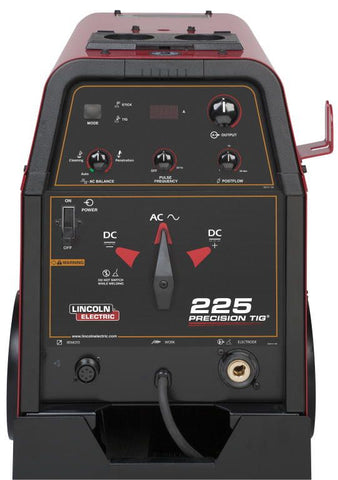

Easy-to-use operator interface - select mode, polarity and begin welding
When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration

ADJUST FOR ANY SITUATION: CLEANING, PENETRATION AND PULSE

When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control
Enable the TIG pulser feature to minimize material distortion from excessive heat input
The TIG pulser can also help moderate filler metal deposition for consistent bead appearance

SUPERIOR STICK WELDER

Also offers outstanding stick welding capabilities, including the use of up to 5.32" (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010)

INPUT POWER	460/575/1/60
RATED OUTPUT	130A/40% 110A/60%
INPUT CURRENT	40% Duty Cycle: 28/22 60% Duty Cycle: 23/19
OUTPUT RANGE	5-230A AC 5-230A DC Max OCV: 75V
DIMENSIONS (H X W X D)	20.7" x 14.5" x 25.6" (526 x 368 x 650 mm)
NET WEIGHT	192 lbs (87.09 kg)

Torch Parts Storage Compartment
Torch Hanger
10 ft. (3.0 m) Work Cable & Clamp
Removable Lift Eye
9 ft. (2.7 m) Input Power Cord
NEMA 6-50R Receptacle
TIG Procedure Guide
GTAW (TIG) Handbook

CATEGORY	PRODUCT NUMBER	PRODUCT NAME
Stick	K2374-1	Lincoln Stick Electrode Holder and Cable
TIG	K4217-1	Lincoln Wireless Pedal for TIG Welding
TIG	K1781-9	Lincoln PTA-9 Ultra Flex TIG Torch, 12.5'
TIG	K1782-12	Lincoln PTA-17 Ultra Flex TIG Torch, 12.5'
TIG	K1784-3	Lincoln PTW-20 TIG Torch, 12.5'
TIG	K1784-4	Lincoln PTW-20 TIG Torch, 25 ft
TIG	K1782-3	Lincoln PTA-17 TIG Torch, (25 ft, 1 PC)
TIG	KP2414-1	Lincoln Gas Lens Kit for PTA-9 and PTW-20
TIG	KP508	Lincoln PTA-17 TIG Torch Consumable Kit
TIG	KP510	Lincoln PTW-20 TIG Torch Consumable Kit
TIG	K1622-1	Lincoln TIG Adapter Kit for PTA-9/PTA-17
TIG	K1622-4	Lincoln TIG Adapter Kit for PTW-18/PTW-20
TIG	K963-3	Lincoln Hand Amptorl™ Rotary Track Style, 6 Pin
TIG	K870	Lincoln Foot Amptrol - 25 ft
TIG	K1813-1	Lincoln Cool-Arc 40 115/1/50/60
TIG	K2266-1	Lincoln TIG-Mate 17 Air-Cooled TIG Torch Starter Kit
TIG	K2267-1	Lincoln TIG-Mate 20 Water Cooled TIG Torch Starter Pack
TIG	K814	Lincoln Arc Start Switch
TIG	K918-1	Lincoln 10' Zippered Cable Cover
TIG	K918-2	Lincoln 22' Zippered Cable Cover
