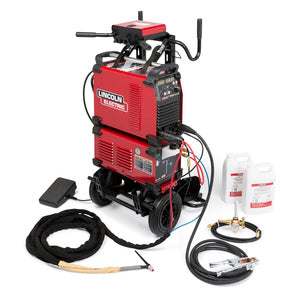

Lincoln K4342-1 Aspect 230 AC/DC Water Cooled TIG Welder One-Pak

$ 8,805.00

Pin It

Lincoln K4342-1 Aspect 230 AC/DC Water Cooled TIG Welder One-Pak

The Aspect 230 TIG welder is an inverter based arc welding power optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can easily customized to your application and saved in available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.

Activate Intellistart™ technology to automatically provide for softer starts and minimal distortion of thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance® technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.

Exceptional arc response and stability
Highly Customizable TIG Machine
PowerConnect(R) technology 120-460V input power

Input Power

120/1/50/60-460/1/3/50/60

Processess

TIG, Stick

Features & Benefits
Specification
Included
Accessories

TACKLE MORE WORK

With up to 230 Amps of maximum output you can TIG weld up to 1/4"

WELD ON THE GO

Portable, lightweight, and easy to transport

PEACE OF MIND

Save critical weld set up information in up to -9- memory locations

INPUT POWER	120/1/50/60-460/1/3/50/60
RATED OUTPUT	120/1/50/60: 110A/100%/14.4V 125A/60%/15V 150A/35%/16V Or 208/230/460/1/3/50/60: 160A/100%/16.4V 190A/60%/17.6V 230A/35%/19.2V
INPUT CURRENT	120V: 21A 208/230/460V: 11A @ 208V 10A @ 250V 5A @ 460V
OUTPUT RANGE	120V: 2-150A TIG 208/230/460V: 2-230A
NET WEIGHT	211.63 lbs (96.00 kg)

10 ft (3m) input power cord
Water Cooled TIG Torch Quick Connect Fitting (Qty. 2)
Aspect 230 AC/DC
Two Wheeled Cart
Cool Arc 22
Foot Pedal
Water Cooled TIG Torch PTW-20 250A (25 ft)
Gas Lens Kit for PTW-20
Low Conductivity Coolant
Zippered Cable Cover (25 ft)
Gas Regulator
Ground Clamp w/ 15 ft cable
Torch Twist Mate Connector

CATEGORY	PRODUCT NUMBER	PRODUCT NAME
General	K1782-1	Lincoln PTA-17 TIG Torch (12.5 ft, 1 PC)
General	K1782-3	Lincoln PTA-17 TIG Torch (25 ft, 1 PC)
General	K1782-14	Lincoln PTA-17F TIG Torch Ready-Pak® - 12.5 ft
General	K1783-1	Lincoln PTA-26 TIG Torch (2.5 ft, 1 PC)
General	K1783-3	Lincoln PTA-26 TIG Torch (25 ft, 1 PC)
General	K1784-4	Lincoln PTW-20 TIG Torch - 25 ft
General	K963-3	Lincoln Hand Amptrol™ Rotary Track Style, 6 Pin (25 ft)
General	K814	Lincoln Arc Start Switch
General	KP508	Lincoln PTA-17 TIG Torch Consumable Kit
General	KP510	Lincoln PTW-20 TIG Torch Consumable Kit
General	K918-1	Lincoln 10' Zippered Cable Cover
General	K2266-1	Lincoln TIG-Mate 17 Air-Cooled TIG Torch Starter Pack
General	KP509	Lincoln PTA-26 and PTW-18 TIG Torch Consumable Kit
General	K1622-3	Lincoln TIG Torch Adapter Kit for PTA-26 Torches
