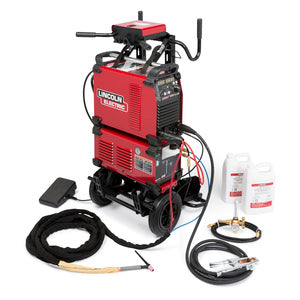

Lincoln K4342-1 Aspect 230 AC/DC Water Cooled TIG Welder One-Pak

$ 9,200.00

Lincoln K4342-1 Aspect 230 AC/DC Water Cooled TIG Welder One-Pak





The Aspect 230 TIG welder is an inverter based arc welding power optimized for AC/DC TIG and Stick welding. A true professional's choice with advanced waveforms, full sequencer, and pulse controls, this machine will deliver the arc you need. All of the features you want can easily customized to your application and saved in available memory settings. TIG weld like a champion with the new Aspect 230 AC/DC machine.



Activate Intellistart™ technology to automatically provide for softer starts and minimal distortion of thinner materials and hotter starts required for thicker materials. Optional AC Auto Balance® technology offers simplicity by automatically providing the optimal mix of cleaning and penetration when welding aluminum.



  • Exceptional arc response and stability
  • Highly Customizable TIG Machine
  • PowerConnect(R) technology 120-460V input power



Input Power

  • 120/1/50/60-460/1/3/50/60



Processess

  • TIG, Stick



Features & Benefits



TACKLE MORE WORK

  • With up to 230 Amps of maximum output you can TIG weld up to 1/4"



WELD ON THE GO

  • Portable, lightweight, and easy to transport



PEACE OF MIND

  • Save critical weld set up information in up to -9- memory locations



Specification



INPUT POWER 120/1/50/60-460/1/3/50/60
RATED OUTPUT

120/1/50/60:
110A/100%/14.4V
125A/60%/15V
150A/35%/16V

Or

208/230/460/1/3/50/60:
160A/100%/16.4V
190A/60%/17.6V
230A/35%/19.2V

INPUT CURRENT

120V:
21A

208/230/460V:
11A @ 208V
10A @ 250V
5A @ 460V

OUTPUT RANGE

120V:
2-150A TIG

208/230/460V:
2-230A

NET WEIGHT

211.63 lbs (96.00 kg)



Included



  • 10 ft (3m) input power cord
  • Water Cooled TIG Torch Quick Connect Fitting (Qty. 2)
  • Aspect 230 AC/DC
  • Two Wheeled Cart
  • Cool Arc 22
  • Foot Pedal
  • Water Cooled TIG Torch PTW-20 250A (25 ft)
  • Gas Lens Kit for PTW-20
  • Low Conductivity Coolant
  • Zippered Cable Cover (25 ft)
  • Gas Regulator
  • Ground Clamp w/ 15 ft cable
  • Torch Twist Mate Connector



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K1782-1
General K1782-3
General K1782-14
General K1783-1
General K1783-3
General K1784-4
General K963-3
General K814
General KP508
General KP510
General K918-1
General K2266-1 Lincoln TIG-Mate 17 Air-Cooled TIG Torch Starter Pack
General KP509 Lincoln PTA-26 and PTW-18 TIG Torch Consumable Kit
General K1622-3 Lincoln TIG Torch Adapter Kit for PTA-26 Torches
