HARRIS 4401374 V-Series® ExtraHeavy Duty Model 450 Ironworker® Rosebud Kit CGA 540/510

$ 600.00
By Harris
View details

V-Series® ExtraHeavy Duty Model 450 Ironworker® Rosebud Kit CGA 540/510

4401374

This kit has the V-Series 2-tube cutting attachment design and thread. The fuel regulator cylinder connection is CGA 510. This kit can cut up to 8 in., braze up to 6 in. copper tube, weld up to 1 in. plate and heat up to 74,000 BTU/Hr.

DETAILS

Model 450 Deluxe Ironworker® kit contains quality equipment needed for cutting, brazing, and welding using oxygen and acetylene gases. The kit can cut up 8 in. (203.2mm) and is supplied with a tip to cut up to 1 in. (25.4mm) plate. The kit can braze up to 6 in. (152.4) diameter copper tube and is supplied with a size tip for brazing copper up to 1 ½ in. (38.1mm) tube. The kit is capable of welding up to 1 in. (25.4mm) and is supplied with a tip that welds up to 1/16 in. (1.6mm) plate. The kit is capable of heating up to 74,000 BTU/Hr. with supplied rosebud tip.

Features

  • Extra Heavy Duty 2-tube design kit to be used with oxygen and acetylene gases.
  • Regulator oxygen and acetylene model 450 with easy-to-read dual scale 2.5 in. gauges, brass T-screw handle, stainless steel diaphragms and tamper-proof, self-reseating safety relief valve and Harris' distinguished internal encapsulated seat filter. Oxygen regulator that delivers up to 125 psi and acetylene regulator delivers up to 15 psi.
  • Torch handle model VH31 that has tube-within-a-tube construction and is equipped with external replaceable FlashGuard® check valves. This handle is the ideal choice for heavy heating applications.
  • Cutting attachment model VH24 features a stainless-steel lever, an in-tube mixer, and threaded connections for easy repair.
  • Consumables included: V1-101-1 cutting tip, V-W mixer, 23A90-5 welding tip, J-63-2 rosebud heating tip.
  • Accessories included: Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag.
  • Model V-W equal or positive pressure mixing system resists damage due to flashback
  • Kit includes Model 62901AC cutting tip, Model 23A905 welding/brazing tip and Model J-63-2 heating tip
  • Accessories include Shade 5 safety glasses (ANSI Z87.1 CE Weld), Handheld ignitor, 1/4 in. x 20 ft. twin R-grade hose and Harris black and red insulated tool kit bag
  • Cuts up to 5 in. (127.0mm) plate with optional tip(s);Welds up to 1/2 in. (12.7mm) plate with optional tip(s);Heats up to 74,000 BTU/HR with included tip;Optional tips sold separately.

Specifications

Equipment

BTU/Hr Rating (Min. - Max.) 44,000 - 74,000
Cutting Attachment Model Number VH24
Cutting Capacity Up to 8 in. (203.2mm) plate with optional tip(s)
Optional tip(s) sold separately
Cutting Tip Style - Acetylene-H2 (Size) V1-101-1
Duty Extra Heavy
Equipped With FlashGuard® check valves - handle
Fuel Gas Regulator Model Number 450-15-510
Gas / Gas Service Acetylene
Hydrogen
NaturalGas
Methane
Propane
Propylene
Gauges 2.5 in. Brass dual scale (psi/kPa) - regulators
Heating Tip Model Number J-63-2
Hose Connection/Fittings BxB
Hose Size 1/4 in. x 20 ft.
Hose Type Twin Oxygen-Acetylene R-grade
Included Accessories Shade 5 safety glasses (ANSI Z87.1 CE Weld)
Handheld ignitor
1/4 in. x 20 ft. twin BxB R-grade hose
Harris black and red insulated tool kit bag
Mixer Model Number V-W
Mixer Type E-Equal or positive pressure
Oxygen Regulator Model Number 450-125-540
Recommended Items/Accessories Steel Gauge Guard - Red (Fuel) - PN 4300863
Steel Gauge Guard - Green (Oxygen) - PN 4300862
Standard One-Piece Tip Cleaner - Model C-9 - PN 9000156
Deluxe Two-Piece Tip Cleaner - Model E-9 - PN 9000160
Seat PTFE Teflon® - regulators
Tank Connection CGA 540
CGA 510
Torch Handle Model Number VH31
Welding Capacity Up to 1/2 in. (12.7mm) plate with optional tip(s)
Optional tips sold separately
Welding/Brazing Tip Model Number - Acetylene 23A90-5

Warranty

Warranty Regulators: 7 Years;All other components: 1 Year



What's Included

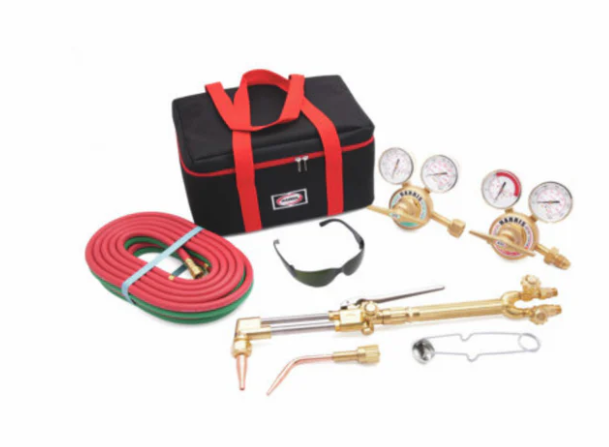

  • Model 450-15-510 Fuel Gas Regulator - 3002494;Model 450-125-540 Oxygen Regulator - 3002497;Model VH31 Torch Handle - 1400425;Model VH24 Cutting Attachment - 1300452;Model V-W Mixer Assembly - 9105214;Model V1-101-1 Cutting Tip - 1502091;Model 23A90-5 Welding Tip - 1600890;Model J-63-2 Heating Tip - 1800720;1/4 in. x 20 ft. Twin B & B R-grade Oxy-Acetylene Hose - 4300591;Safety Glasses Shade 5 - 4303629;Handheld Ignitor - 9004486;Harris Insulated Tool Kit Bag - 8855094;Trilingual Kit Manual - 9505643;V-Series Tip Chart - 9500688
