Lincoln Electric K4487-1 Power Wave 300C Standard

Lincoln Electric K4487-1 Power Wave 300C Standard

$ 13,154.35
By Lincoln Electric
View details

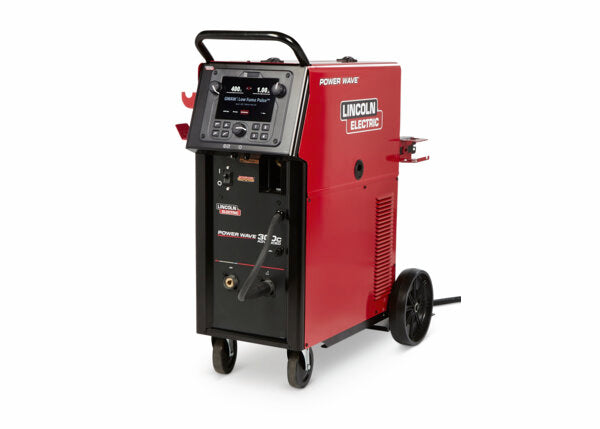

Lincoln Electric K4487-1 Power Wave 300C Standard



The Power Wave 300C has best-in-class performance as the industry’s only true 300 Amp, 100% duty cycle, all-process machine.

Output

OutputOutput

Input

InputInput

DETAILS

From technical training to industrial fabrication, Lincoln Electric is introducing an all-new industrial 300 Amp, Do-Everything Power Wave. Packed with all of the performance and leading-edge technology you expect from a Power Wave system, now completely revamped to take the industrial “all-in-one” class of welders to the next level.



Features

  • All-Process Versatility: SMAW, GTAW, GMAW, FCAW, CAG processes
  • Intelligent Connectivity: Intelligent, operator-focused interface and powerful Industry 4.0 capabilities including CheckPoint® Production Monitoring.
  • Flexible Input Power: PowerConnect® Technology allows for 200V-600V input power while maintaining consistent and reliable arc performance
  • Ready-to-Run™ Design Standard features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and TIG solenoid.



What's Included

  • 10ft (3.0m) Input Power Cord
  • Magnum® PRO Curve™ 300 Gun Ready-Pak (K2951-2-6-45)
  • Harris Flowmeter/Regulator and Hose Kit (3100211)
  • 15ft (4.5m) Work Lead (K1803-3)
  • .035/.045” Combination V Groove Drive Rolls (Included in Wire Drive Assembly) (KP1696-1)

Service Information



Specifications



Machines



Machines Processes Stick (SMAW)
Gouging (CAC-A)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Max Rating 350
Output Range by Mode GMAW: 350A / 31.5 V/ 40% GMAW: 300A / 29 V / 100% SMAW: 325A / 33V / 40% SMAW: 280A / 31.2V/100% FCAW: 350A / 31.5 V/ 40% FCAW: 300A / 29 V / 100% GTAW: 325A / 23V / 40% GTAW: 300A / 22V / 100%
Data Technologies Ethernet
Machines Communication Technology ArcLink
Amphenol Pins (type of connector) 12
Work Lead Connector Type Dinse
Work Cable Length 10 FT



Wire and TIG Feeders



Number of driven rolls 2 rolls
Configuration Single
Communication Technology ArcLink
Accesories Communication Connector Type 12-pin
MIG-WireFeeders Yes
MIGPulse-WireFeeders Yes
Wire Feeders Processes MIG
Pulsed MIG
Flux Cored



Basic Specification



Input Voltage 200-208/220-230/380-415/460/575/1/3/50/60
Input Current 3ph /1ph / 40% Duty Cycle: 44/40/25/20/16.5, 3ph /1ph/ 100% Duty Cycle: 35/32/19.5/16/14
Input Hertz 50/60
Input Phase 1/3 ph
Input Power 208/230/380/415/460/575/1/3/50/60
Mode Icon CC/CV
Output Range 5-350A
Polarity DC
Rated Output 100% - 35/32/19.5/16/14



Application



Typical Application General fabrication



Warranty



Warranty 5 Years
