  • Lincoln Electric K4934-1 Power Wave 300C Advanced Educational One-Pak

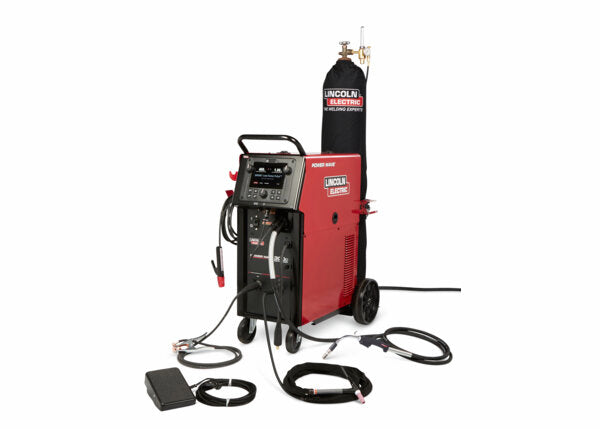

Lincoln Electric K4934-1 Power Wave 300C Advanced Educational One-Pak

$ 14,484.00

Quantity


Pin It

Lincoln Electric K4934-1 Power Wave 300C Advanced Educational One-Pak



The Power Wave 300C has best-in-class performance as the industry’s only true 300 Amp, 100% duty cycle, all-process machine.

Output

OutputOutput

Input

InputInput

DETAILS

From technical training to industrial fabrication, Lincoln Electric is introducing an all-new industrial 300 Amp, Do-Everything Power Wave. Packed with all of the performance and leading-edge technology you expect from a Power Wave system, now completely revamped to take the industrial “all-in-one” class of welders to the next level.



Features

  • All-Process Versatility: SMAW, GTAW, GMAW, FCAW, CAG processes
  • Intelligent Connectivity: Intelligent, operator-focused interface and powerful Industry 4.0 capabilities including CheckPoint® Production Monitoring.
  • Flexible Input Power: PowerConnect® Technology allows for 200V-600V input power while maintaining consistent and reliable arc performance
  • Ready-to-Run Design Standard features for simple and straightforward operation, including cable management hooks, integrated cart with tilting bottle rack, and TIG solenoid.



What's Included

  • 10ft (3.0m) Input Power Cord
  • Magnum® PRO Curve™ 300 Gun Ready-Pak (K2951-2-6-45)
  • Harris Flowmeter/Regulator and Hose Kit (3100211)
  • 15ft (4.5m) Work Lead (K1803-3)
  • .035/.045” Combination V Groove Drive Rolls (Included in Wire Drive Assembly) (KP1696-1)

Service Information



Specifications





Machines Processes Stick (SMAW)
Gouging (CAC-A)
Flux-Cored (FCAW)
TIG (GTAW)
MIG (GMAW)
Pulsed MIG (GMAW-P)
Max Rating 350
Output Range by Mode GMAW: 350A / 31.5 V/ 40% GMAW: 300A / 29 V / 100% SMAW: 325A / 33V / 40% SMAW: 280A / 31.2V/100% FCAW: 350A / 31.5 V/ 40% FCAW: 300A / 29 V / 100% GTAW: 325A / 23V / 40% GTAW: 300A / 22V / 100%
Data Technologies Ethernet
Machines Communication Technology ArcLink
Amphenol Pins (type of connector) 12
Work Lead Connector Type Dinse
Work Cable Length 10 FT





Number of driven rolls 2 rolls
Configuration Single
Communication Technology ArcLink
Accesories Communication Connector Type 12-pin
MIG-WireFeeders Yes
MIGPulse-WireFeeders Yes
Wire Feeders Processes MIG
Pulsed MIG
Flux Cored





Input Voltage 200-208/220-230/380-415/460/575/1/3/50/60
Input Current 3ph /1ph / 40% Duty Cycle: 44/40/25/20/16.5, 3ph /1ph/ 100% Duty Cycle: 35/32/19.5/16/14
Input Hertz 50/60
Input Phase 1/3 ph
Input Power 208/230/380/415/460/575/1/3/50/60
Mode Icon CC/CV
Output Range 5-350A
Polarity DC
Rated Output 100% - 35/32/19.5/16/14





Typical Application General fabrication





Warranty 5 Years
