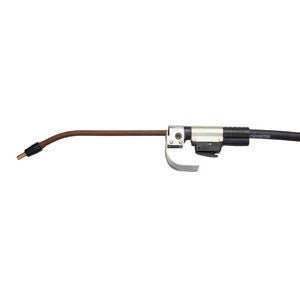

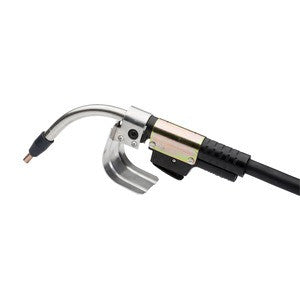

Lincoln K126-10 Pro Innersheild 350A FCAW-SS Welding Gun 062-332

$ 707.00

Size

Lincoln K126-10 Pro Innersheild 350A FCAW-SS Welding Gun 062-332





Semiautomatic Air-Cooled Self-Shielded Innershield Guns



Lincoln has been the leader in self-shielded wire, feeders and guns for more than 50 years. The new K126 PRO guns feature replaceable liners, interchangeable backends, long life Magnum Pro contact tips, improved heat resistant gun tubes and better trigger lead protection. Select Lincoln K126 PRO Series for your construction welding applications.



Processes

  • Flux-Cored Self-Shielded



Wire Diameter Range

  • .035" - .120" (0.9 - 3.0 mm)



Features & Benefits



NEW REPLACEABLE LINE SYSTEM



MAGNUM® PRO COPPER PLUS™ CONTACT TIPS



REPLACEABLE CONTACT TIP HOLDER

  • Easily replaced without damage to the gun tube if the tip seizes or fuses



INTERCHANGABLE GUN CONNECTORS

  • For use on wide range of feeders


INTEGRATED TRIGGER

  • Leads in coaxial cable rather than externally routed
  • Improved protection against abrasion



STAINLESS STEEL GUN TUBE JACKET

  • Spatter resistant for long life and electrical isolation
  • Popular 60° non-reverse bend is standard on the gun
  • Optional reverse and non-reverse bend gun tubes are available
  • Reverse bend design is used to help take the cast out of stiffer flux-cored wire
  • Rotatable for improved access in tight spaces



EXTRA TRIGGER LEADS

  • Enable fast repairs


PLATED STEEL STRAIN RELIEF EXTENDS CABLE LIFE



Specifications



K126-10 K126-11 K126-12 K126-13
DUTY CYLE AT RATED AMPERAGE 60% 60% 60% 60%
RATED AMPERAGE 350 350 350 350
GUN TYPE Handheld Handheld Handheld Handheld
CABLE LENGTH 10 ft 15 ft 15 ft 15 ft
WIRE DIAMETER .035" - .120"  .035" - .120"  .035" - .120" .035" - .120"
COOLING Air Cooled Air Cooled Air Cooled Air Cooled
DIMENSIONS 4.38" x 24" x 18.25" 4.38" x 24" x 18.25" 4.38" x 24" 18.25" 4.38" x 24" x 18.25"
NET WEIGHT 9.07 lb 11.80 lb 10.72 lb 10.90 lb



Included



K126-10, K126-11

  • 5/64" (2.0 mm) Contact Tip (KP2745-564)
  • Tip Holder (KP2908-1)
  • Insulator (KP2907-1)
  • 62" Non-Reverse Stainless Steel 6" (152 mm) Bend Gun Tube (KP2906-62)
  • Lincoln Electric Gun Connector (K613-6)
  • 3/32" (2.4 mm) Liner (KP45H-332-15)



K126-12

  • 5/64" (2.0 mm) Contact Tip (KP2745-564)
  • Tip Holder (KP2908-1)
  • Insulator (KP2907-1)
  • 62" Non-Reverse Stainless Steel 6" (152 mm) Bend Gun Tube (KP2906-62)
  • #4 Size Gun Connector (K466-10)
  • 5/64" (2.0 mm) Liner (KP44-564-15)



K126-13

  • 5/64" (2.0 mm) Contact Tip (KP2745-564)
  • Tip Holder (KP2908-1)
  • Insulator (KP2907-1)
  • 30° Non-Reverse Classic Braided 12" (305 mm) Gun Tube (KP3267-1)
  • Gun Connector (K466-8)
  • 5/64" (2.0 mm) Liner (KP44-564-15)



Expendable Parts



 K126-10, K126-11, K126-13

PRODUCT NUMBER PRODUCT NAME
K466-1 Lincoln LN-7-8-9 & LN-25 Series Connector Kit
K466-10 Lincoln Connector Kit - LF-72-74, LN-25 Pro, Power Feed 25M
K466-2 Lincoln Tweco No. 2, No. 3, No. 4 Gun Connector Kit
K466-3 Lincoln Miller Feeder Gun Connector Kit
K466-6 Lincoln Power MIG & Power Wave C300 Gun Connector Kit
K466-8 Lincoln LN-8-9-1/16 & Larger Gun Connector Kit
K613-1 Lincoln Magnum 550 Connector Kit - Lincoln Feeders
K613-2 Lincoln Magnum 550 Connector Kit - Tweco Adapted
K613-3 Lincoln Magnum 550 Connector Kit - Miller Feeders
K613-6 Lincoln Magnum 550 Connector Kit - LN-8-9, 1/16" & Larger Wire
K613-7 Lincoln Magnum 550 Connector Kit - For 10 Series Feeders

K126-12

PRODUCT NUMBER PRODUCT NAME
K466-1 Lincoln LN-7-8-9 & LN-25 Series Connector Kit
K466-10 Lincoln Connector Kit - LF-72-74, LN-25 Pro, Power Feed 25M
K466-6 Lincoln Power MIG & Power Wave C300 Gun Connector Kit

Contact Tips



K126-10, K126-11, K126-13

PRODUCT NUMBER PRODUCT NAME
KP2745-035 Lincoln .035" Copper Plus Contact Tip 550A
KP2745-035R Lincoln .035" Extended Life Copper Plus Contact Tip 550A
KP2745-040 Lincoln .040" Copper Plus Contact Tip 550A
KP2745-045
Lincoln .045" Copper Plus Contact Tip 550A
KP2745-045R Lincoln .045" Extended Life Copper Plus Contact Tip 550A
KP2745-052 Lincoln .052" Copper Plus Contact Tip 550A
KP2745-052R Lincoln .052" Extended Life Copper Plus Contact Tip 550A
KP2745-116 Lincoln 1/16" Copper Plus Contact Tip 550A
KP2745-116R Lincoln 1/16" Extended Life Copper Plus Contact Tip
KP2745-072 Lincoln .068" - .072" Copper Plus Contact Tip
KP2745-072R Lincoln .068" - .072" Extended Life Copper Plus Contact Tip 550A
KP2745-564 Lincoln 5/64" Copper Plus Contact Tip 550A
KP2745-564R Lincoln 5/64" Extended Life Contact Tip 550A
KP2745-332 Lincoln 3/32" Copper Plus Contact Tip 550A
KP2745-332R Lincoln 3/32" Extended Life Copper Plus Contact Tip
KP2745-764 Lincoln 7/64" Copper Plus Contact Tip 550A
KP2745-764R Lincoln 7/64" Extended Life Copper Plus Contact Tip 550A
KP2745-18 Lincoln 1/8" Copper Plus Contact Tip 550A



K126-12

PRODUCT NUMBER PRODUCT NAME
KP2745-035 Lincoln .035" Copper Plus Contact Tip 550A
KP2745-035R Lincoln .035" Extended Life Copper Plus Contact Tip 550A
KP2745-045
Lincoln .045" Copper Plus Contact Tip 550A
KP2745-045R Lincoln .045" Extended Life Copper Plus Contact Tip 550A
KP2745-052 Lincoln .052" Copper Plus Contact Tip 550A
KP2745-116 Lincoln 1/16" Copper Plus Contact Tip 550A
KP2745-564 Lincoln 5/64" Copper Plus Contact Tip 550A

Nozzles



K126-10, K126-11, K126-13

PRODUCT NUMBER PRODUCT NAME
KP2482-1 Lincoln Nozzle Assembly 30°, 11.68"



Insulators



 K126-10, K126-11, K126-12, K126-13

PRODUCT NUMBER PRODUCT NAME
KP2907-1 Lincoln Insulator
KP2908-1 Lincoln Tip Holder



Liners



K126-10, K126-11, K126-13

PRODUCT NUMBER PRODUCT NAME
KP44-564-15 Lincoln 1/16" - 5/64" Cable Liner - 15 ft
KP45H-332-15 Lincoln 5/64" - 3/32" Cable Liner - 15 ft



Gun Tubes



 K126-10, K126-11, K126-13

PRODUCT NUMBER PRODUCT NAME
KP2906-62R Lincoln 62° Reverse Bend, 6" Gun Tube
KP2906-30R Lincoln 30° Reverse Bend, 6" Gun Tube
KP2906-30R-L Lincoln 30° Reverse Bend, 12" Gun Tube
KP2906-62 Lincoln 62° Non-Reverse Bend, 6" Gun Tube
KP2906-30 Lincoln 30° Non-Reverse Bend, 6" Gun Tube
KP2906-30-L Lincoln 30° Non-Reverse Bend, 12" Gun Tube
KP2927-62R Lincoln Classic Braided Varnish Jacket 62° Reverse Bend, 6" Gun Tube
KP2927-30R-L Lincoln Classic Braided Varnish Jacket 30° Non-Reverse, 12" Gun Tube
KP3267-1 Lincoln 30° Non-Reverse Classic Braided 12" Gun Tube



K126-12

PRODUCT NUMBER PRODUCT NAME
KP2906-62
Lincoln 62° Non-Reverse Bend, 6" Gun Tube
