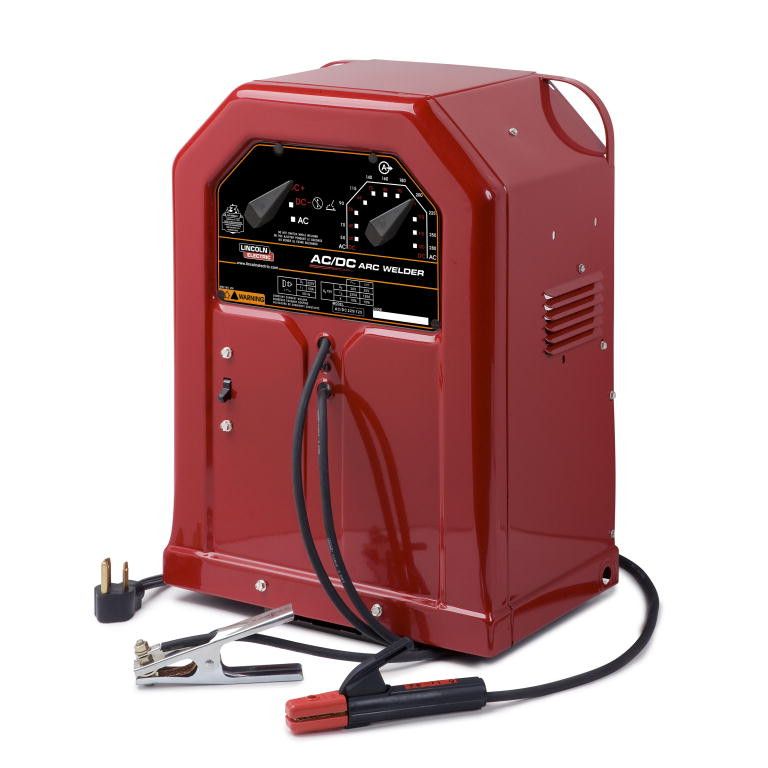

Lincoln K1297 AC/DC 225/125 Stick Welder

$ 675.00

Quantity


Pin It

Lincoln K1297 AC/DC 225/125 Stick Welder



Tackle more tasks with AC/DC.



The AC/DC 225/125 is the same proven design as the renowned AC-225 arc welder, but adds the smoother, more stable DC welding arc. This machine is ideal for farm, shop, and home use where improved arc welding performance is desired.




Easy to Operate

  • With front mounted AC/DC polarity switch and full range amperage selector switch for accurate and dependable procedure setting



Smooth Arc

  • Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes



125 Amp DC Output

  • Enough for 1/8" (3.2 mm) electrodes



225 Amp AC Output

  • Enough for 3/16" (4.8 mm) diameter general purpose mild steel electrodes and 5/32" (4.0 mm) sizes of other electrodes



NEMA Rated, UL Listed and CSA Approved

Input Power 230/1/60
Rated Output

125A DC/25V/20%

225A AC/25V/20%

Input Current

AC: 50A

DC 36A

Output Range

30-125A DC

40-225A AC

Dimensions (H x W x D) 24" x 17.25" x 12" (610 mm x 438 mm x 305 mm)
Net Weight 114 lbs (51.71 kg)
  • Insulated electrode holder and cable
  • Heavy duty work clamp and cable
  • Input cable with attached plug
CATEGORY  PRODUCT NUMBER  PRODUCT NAME
General K761 Lincoln Wheel Kit
