Lincoln K1653-4 Mobiflex® 200-M w/ MERV 14 Filter Welding Fume Extractor Base Unit
$ 4,774.00
Lincoln K1653-4 Mobiflex® 200-M w/ MERV 14 Filter Welding Fume Extractor Base Unit
FUMES DON'T STAND A CHANCE
The Mobiflex® 200-M are low vacuum systems for welding fume extraction and filtration. Their size and mobility make them ideal for smaller manufacturing facilities that require light to medium duty welding fume extraction in variable locations. Not suitable for use with cutting or arc gouging operations.
- Disposable (non-cleaning) filter
- Large filter area - 538 ft²
- Color-coded filter status indicator, tool-less main filter replacement
- Choice of manual or automatic on/off operation
- Made in U.S.A. of U.S. and foreign content
Input Power:
- 120/1/60
Processes:
- Stick, TIG, MIG, Flux-Cored
FEATURES
- Generous Airflow: 735 CFM with LFA 3.1/4.1 extraction Arm
- CFM level is dependent upon arm length, fan type and system maintenance
- Internal spark arrestor: Functions as a pre-filter for larger sized particulate
- Prevents sparks from reaching the filter
- Optimal motion and reach for work area: Choose from a variety of extractor arms or select a hose/hood set
- Filter status indicator - visual guide to remaining filter life
BENEFITS
- Cleaning work environment: Reduce dust and dirt in operator and surrounding work areas
- Filter size: Larger surface area requires fewer changes, helping to lower operation costs
- Extraction Arms: Allows for optimal motion and reach for multiple work areas
- Front casters and rear wheels: Provide ideal mobility and positioning
IDEALLY USED FOR
- Small Manufacturing Facilities
- Schools/Training
- Fabrication
- Plant Maintenance and Repair
| INPUT POWER | 120/1/60 |
| DIMENSIONS (H X W X D) | 36" x 32" x 48" (900 x 810 x 1210 mm) |
| NET WEIGHT | 200 lbs (90.72 kg) |
| FILTER TYPE | Cellulose |
| FILTER SIZE | 538 ft² (50 m²) |
| INPUT POWER | 115/1/50/60 |
| INPUT CURRENT | 7.2A |
- Base Unit (K1653-4)
- Filter
- Plastic Housing
- 2 ft. (0.6 m) Flexible Hose
MOBIFLEX 200-M FILTER SYSTEM

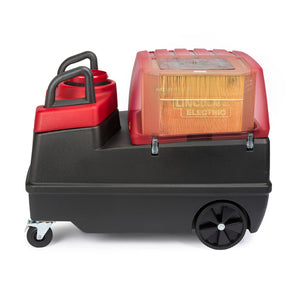

The Mobiflex® 200-M has one of the largest disposable filter cartridges in its class; the LongLife filter has a surface area of 538² ft (50 m²). The combination of filter size and unique 3D-filter pleat structure results in higher filter efficiency, longer filter life, and lower operational costs.

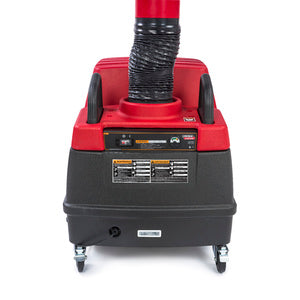

Located on the front of the Mobiflex® 200-M is a filter status indicator. The filter status indicator gradually moves from white to red as the filter becomes saturated with particulate, providing visual indication of when system maintenance and filter replacement are necessary.
A washable aluminum pre-filter removes larger-sized particulate and provides spark entrapment.
