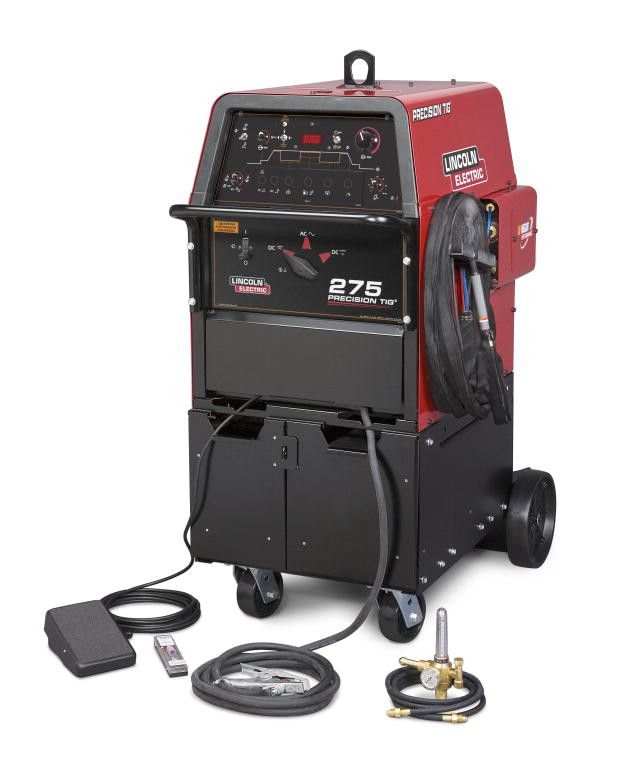

Lincoln K2618-1 Precision TIG® 275 TIG Welder Ready-Pak®





SIMPLICITY, CONTROL AND RANGE





The Lincoln Precision TIG 275 is a versatile shop machine ideal for any type of TIG or Stick welding maintenance application, including the use of 5/32-in. (4.0 mm) stick electrode. The Lincoln Precision TIG 275 features the patented Micro-Start II Technology, which enhances starting and arc stability, and provides for more precise welds and crater fills.



Input Power

  • 208/230/460/1/60



Processes

  • Stick, TIG





SIMPLICITY THROUGH TECHNOLOGY

  • AC Auto Balance® automatically provides for the optimal mix of cleaning and penetration for welding on aluminum
  • Take full control - adjust AC Balance® to increase or decrease cleaning action or penetration on aluminum



ADVANCED PULSE CONTROL PANEL (OPTIONAL ON THE PRECISION TIG 275)

  • Upgrade with Advanced Control Panel to include the TIG pulser to minimize material distortion from excessive heat input
  • The TIG pulser can also help moderate filler metal deposition for consistent bead appearance



WIDE OUTPUT RANGE

  • Tackle either end of the material thickness spectrum with an amperage range of 2 to 340 amps



SIDE-MOUNTED TORCH HOLDER AND CONNECTIONS

  • Enables simple cable management and protection, and a place for your torch when not in use





INPUT POWER 208/230/460/1/60
RATED OUTPUT 275A/40%
225A/60%
INPUT CURRENT 40% Duty Cycle: 104/94/47A
60% Duty Cycle: 86/78/39
OUTPUT RANGE 2-340A AC
2-340A DC
Max OCV: 75V
DIMENSIONS (H X W X D) 49.7" x 28" x 41" (1262 x 711 x 1041 mm)
NET WEIGHT 683 lbs (309.81 kg)





Order a Lincoln Ready-Pak® and get everything you need to complete a welding package - all with one order number. Shipped fully assembled.



  • Under-Cooler Carter Water Cooler (K1828-1)
  • Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)
  • Harris® Gas Regulator/Flowmeter and 10 ft. (3.0 m) Hose Kit (3100211)
  • PTW-20 250 amp water cooled TIG torch w/ 25 ft (7.6 m) cable (K1784-4)
  • Zippered Torch Cover for TIG Torch with 25 ft (7.6 m) Cable Assembly (K918-2)
  • Parts Kit for PTW-20 Series contains a long back cap, 1/16", 3/32", 1/8" collets, 1/16", 3/32", 1/8" collet bodies, 1/16", 3/32", 1/8" 2% Ceriated tungsten, and three Alumina nozzles (5/16", 3/8", 7/16" orifices) (KP510)
  • Water Hose (2 included) (S19558-4)
  • Adapter for optional PTA-9 or -17 Torch (3/8") (S20403-4)
