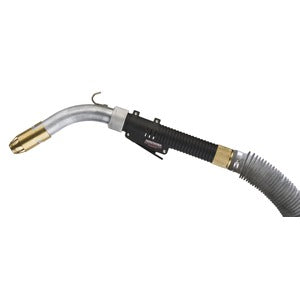

Lincoln K2649-1 Magnum® PRO 350 Fume Welding Gun - 15 ft
$ 1,953.00
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K2649-1 Magnum PRO® 350 Fume Welding Gun - 15 ft
SEMIAUTOMATIC AIR-COOLED FUME EXTRACTION GUNS
Magnum® PRO fume guns are designed to stand up to high productivity and fabrication and production environments. For high amperage semiautomatic welding where long hours of arc time are the norm choose Magnum® PRO.
Processes:
- MIG, Pulsed MIG, Flux-Cored
Wire Diameter Range:
- .035" - 5/64" (0.9 - 2.0 mm)
Features & Benefits
ALL GUNS RATED AT 100% DUTY CYCLE
INDUSTRIAL GRADE CONSTRUCTION
- High quality copper and aluminum parts ensure superior electrical contact and heat dissipation
- Four trigger leads are standard for fast field repair
- Patent-pending Anti-Seize™ tip and diffuser thread design reduces part fusing and seizing
LINCOLN COPPER PLUS™ CONTACT TIPS
- Larger tip diameter ad mass improves heat dissipation to increase tip life
COMFORT GRIP™ HANDLE
- Barrel style allows more hand positions and a comfortable grip
INNOVATIVE STRAIN RELIEF
- Swivels to take pressure off the operator's wrists, includes flexible bellows to make out-of-position work more comfortable and features Kevlar® sheathing to extend fume hose and gun cable life
SHARED EXPENDABLE PARTS
- Both guns used the standard Magnum® PRO semiautomatic 550A gun tips, nozzles and diffusers
Specifications
DUTY CYCLE AT RATED AMPERAGE | 100% |
RATED AMPERAGE | 350 |
GUN TYPE | Fume |
CABLE LENGTH | 15 ft (4.5 m) |
WIRE DIAMETER | .035" - 5/64" (0.9 - 2.0 mm) |
COOLING | Air Cooled |
NET WEIGHT | 19.15 lbs (8.69 kg) |
Included
- Contact Tip
- 5/8" (16 mm) Slip-On Gas Nozzle
- Slip-On Diffuser
- FCAW Smoke Extractor Nozzle
Required Options
PRODUCT NUMBER | PRODUCT NAME |
K466-1 | Lincoln LN-7-8-9 & LN-25 Series Connector Kit |
K466-6 | Lincoln Power MIG & Power Wave C300 Gun Connector Kit |
K466-10 | Lincoln LF-72-74, LN-25 Pro, Power Feed 25 M Connector Kit |
Contact Tips
PRODUCT NUMBER | PRODUCT NAME |
KP2745-035 | Lincoln .035" 550A Copper Plus Contact Tip |
KP2745-035R | Lincoln .035" 550A Extended Life Copper Plus Contact Tip |
KP2745-045 | Lincoln .045" 550A Copper Plus Contact Tip |
KP2745-045R | Lincoln .045" 550A Extended Life Copper Plus Contact Tip |
KP2745-052 | Lincoln .052" 550A Copper Plus Contact Tip |
KP2745-116 | Lincoln 1/16" 550A Copper Pus Contact Tip |
KP2745-564 | Lincoln 5/64" 550A Copper Plus Contact Tip |
Nozzles
PRODUCT NUMBER | PRODUCT NAME |
KP2743-1-62R | Lincoln 1/8" 550A Thread-On Recessed Nozzle |
Diffusers
PRODUCT NUMBER | PRODUCT NAME |
KP2747-1 | Lincoln 550A Thread-On Diffuser |
Insulators
PRODUCT NUMBER | PRODUCT NAME |
KP2773-1 | Lincoln 550A Gooseneck Insulator |
Liners
PRODUCT NUMBER | PRODUCT NAME |
KP44-116-15 | Lincoln .052" - 1/16" Cable Liner (15 ft) |
KP44-3545-15 | Lincoln .035" - .045" Cable Liner (15 ft) |
