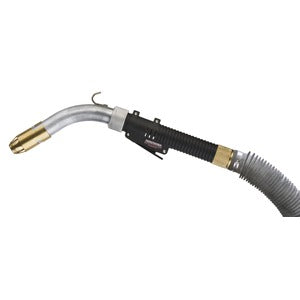

Lincoln K2650-1 Magnum® PRO 550 Fume Welding Gun - 15 ft
$ 2,157.00
Lincoln K2650-1 Magnum® PRO 550 Fume Welding Gun - 15 ft
SEMIAUTOMATIC AIR-COOLED FUME EXTRACTION GUNS
Magnum® PRO fume guns are designed to stand up to high productivity and fabrication and production environments. For high amperage semiautomatic welding where long hours of arc time are the norm choose Magnum® PRO.
Processes:
- MIG, Pulsed MIG, Flux-Cored
Wire Diameter Range:
- .035" - 1/8" (0.9 - 3.2 mm)
- Features & Benefits
- Specifications
- Included
- Required Options
- Contact Tips
- Nozzles
- Diffusers
- Insulators
- Liners
ALL GUNS RATED AT 100% DUTY CYCLE
INDUSTRIAL GRADE CONSTRUCTION
- High quality copper and aluminum parts ensure superior electrical contact and heat dissipation
- Four trigger leads are standard for fast field repair
- Patent-pending Anti-Seize™ tip and diffuser thread design reduces part fusing and seizing
LINCOLN COPPER PLUS™ CONTACT TIPS
- Larger tip diameter ad mass improves heat dissipation to increase tip life
COMFORT GRIP™ HANDLE
- Barrel style allows more hand positions and a comfortable grip
INNOVATIVE STRAIN RELIEF
- Swivels to take pressure off the operator's wrists, includes flexible bellows to make out-of-position work more comfortable and features Kevlar® sheathing to extend fume hose and gun cable life
SHARED EXPENDABLE PARTS
- Both guns used the standard Magnum® PRO semiautomatic 550A gun tips, nozzles and diffusers
| DUTY CYCLE AT RATED AMPERAGE | 100% |
| RATED AMPERAGE | 550 |
| GUN TYPE | Fume |
| CABLE LENGTH | 15 ft (4.5 m) |
| WIRE DIAMETER | .035" - 1/8" (0.9 - 3.2 mm) |
| COOLING | Air Cooled |
| NET WEIGHT | 18.4 lbs (8.35 kg) |
- Contact Tip
- 5/8" (16 mm) Slip-On Gas Nozzle
- Slip-On Diffuser
- FCAW Smoke Extractor Nozzle
| PRODUCT NUMBER | PRODUCT NAME |
| K613-1 |
Lincoln Magnum 550 Connector Kit - Lincoln Feeders |
| K613-2 | Lincoln Magnum 550 Connector Kit - Tweco Adapted |
| K613-3 |
Lincoln Magnum 550 Connector Kit - Miller Feeders |
| K613-6 | Lincoln Magnum 550 Connector Kit - LN-8-9, 1/16" and Larger Wire |
| K613-7 | Lincoln Magnum 550 Connector Kit - For 10 Series Feeders |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2743-1-62R | Lincoln 5/8" 550A Thread-On Recessed Nozzle |
| KP2743-1-62F | Lincoln 5/8" 550A Thread-On Flush Nozzle |
| KP2743-1-62S | Lincoln 5/8" 550A Thread-On Stickout Nozzle |
| KP2743-2-62R | Lincoln 5/8" 550A Slip-On Recessed Nozzle |
| KP2743-2-62F | Lincoln 5/8" 550A Slip-On Flush Nozzle |
| KP2743-2-62S | Lincoln 5/8" 550A Slip-On Stickout Nozzle |
| PRODUCT NUMBER | PRODUCT NAME |
| KP2747-1 | Lincoln 550A Thread-On Diffuser |
| KP2747-2 | Lincoln 550A Slip-On Diffuser |
| PRODUCT NUMBER | PRODUCT NAME |
| KP45-116-15 | |
| KP45-18-15 |
|
| KP45-3545-15 | |
| KP45H-332-15 |
