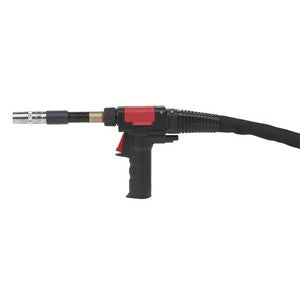

Lincoln K2704-2 Cougar® Push-Pull Air-Cooled Welding Gun

$ 4,034.55
By Lincoln Electric
Size
View details

Lincoln K2704-2 Cougar® Push-Pull Air-Cooled Welding Gun





PREMIUM SEMIAUTOMATIC PISTO-GRIP GUNS FOR ALUMINUM WELDING



Cougar™ push-pull guns are intended for those operators who prefer an upright pistol-grip design for aluminum welding fabrication or production environments.



Features & Benefits



FATIGUE-REDUCING COMFORT, MORE CONTROL

  • Sure-Grip™ Handle - Lightweight, well balanced pistol grip fits comfortably in either hand
  • Refined Adjustment - A multi-turn potentiometer allows both left and right-handed operators to make precise wire feed speed changes
  • Improved Strain Relief - Integrated system flexes to enhance operator comfort while protecting internal wiring


GREATER PEACE OF MIND

  • Better protection - The recessed gun trigger eliminates accidental breaking
  • Wear-Resistant Security - An abrasion-resistant cable cover prevents power cable chafing


FAST CHANGEOVERS AND EASY REPAIRS

  • Tool-less Drive Roll Changes - Out slip-fit dual-groove drive rolls feature a D-contour to prevent unwanted spinning
  • Lincoln Copper Plus™ Contact Tips - Larger tip diameter and mass improves heat dissipation to increase tip life
  • Gas Leak Prevention - The Posi-Seat™ gun barrel locking nut seats snugly to prevent gas leaks
  • Interchangeable Expendable - Parts are shared with their Magnum® PRO and Panther™ guns to minimize part stocking



Specifications



K2704-2 K2704-3
DUTY CYCLE AT RATED AMPERAGE 60% 60%
RATED AMPERAGE 300 300
GUN TYPE Push Pull Push Pull
CABLE LENGTH 25 ft 50 ft
WIRE DIAMETER .035" - 1/16" (0.9 - 1.6 mm) .035" - 1/16" (0.9 - 16 mm)
COOLING  Air Cooled Air Cooled
NET WEIGHT 20 lbs (9.07 kg) 31.48 lbs (14.28 kg)


Included



  • .035" (0.9 mm) Contact Tip (Qty. 1)
  • 3/64" (1.2 mm) Contact Tip (Qty. 1)
  • 0.625" (5/8") (15.9 mm) Thread-On Gas Nozzle with 1/8" (3.2 mm) recess
  • Thread-On Diffuser
  • .035" - 3/64" Drive Roll
  • .035" - 1/16" Wire Conduit


Expendable Parts



PRODUCT NUMBER PRODUCT NAME
KP2881-15 Lincoln .035" - 1/16" Wire Conduit (15 ft)
KP2881-25 Lincoln .035" - 1/16" Wire Conduit (25 ft)
KP2881-50 Lincoln .035" - 1/16" Wire Conduit (50 ft)
KP2877-60 Lincoln 60° Angle Gun Barrel Air-Cooled Cooling System
KP2877-45 Lincoln 45° Angle Gun Barrel Air-Cooled Cooling System
KP2877-180 Lincoln 180° Angle Gun Barrel Air-Cooled Cooling System
KP2876-1 Lincoln .035" - 3/64" Drive Roll Kit
KP2876-2 Lincoln 1/16" Drive Roll Kit



Wire Feeders



PRODUCT NUMBER PRODUCT NAME
K2403-2 Lincoln Power MIG 350MP MIG Welder
K2675-2 Lincoln Power Wave® C300 Advanced Process Welder
K2536-4 Lincoln Power Feed 25M Aluminum Case Wire Feeder
K2536-5 Lincoln Power Feed 25M Plastic Case Wire Feeder



Contact Tips



PRODUCT NUMBER PRODUCT NAME
KP2744-035A Lincoln .035" Aluminum Copper Plus Contact Tip
KP2744-116A Lincoln 1/16" Aluminum Copper Plus Contact Tip
KP2744-364A Lincoln 3/64" Aluminum Copper Plus Contact Tip
KP2744-364A5356 Lincoln 3/64" Aluminum (5356 Wire) Copper Plus Contact Tip



Nozzles



PRODUCT NUMBER PRODUCT NAME
KP2742-1-50F Lincoln 1/2" Nozzle 350A, Thread-On, Flush
KP2742-1-50R Lincoln 1/2" Nozzle 350A, Thread-On, 1/8" Recessed
KP2742-1-62F Lincoln 5/8" Nozzle 350A, Thread-On, Flush
KP2742-1-62R Lincoln 5/8" Nozzle 350A, Thread-On, 1/8" Recessed



Diffusers



PRODUCT NUMBER PRODUCT NAME
KP2746-1 Lincoln 350A Thread-On Diffuser



Insulators



PRODUCT NUMBER PRODUCT NAME
KP2773-2 Lincoln 350A Gooseneck Insulator



Liners



PRODUCT NUMBER PRODUCT NAME
KP2879-1 Lincoln 45° and 60° Angle Barrel Liner (.035" - 1/16")
KP2879-2 Lincoln 180° Angle Barrel Liner (.035" - 1/16")
