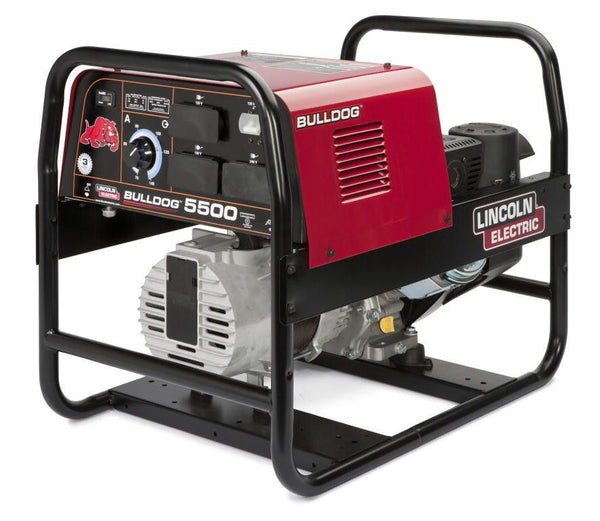

Lincoln K2708-2 Bulldog® 5500 Engine Driven Welder

$ 3,821.00

Lincoln K2708-2 Bulldog® 5500 Engine Driven Welder





PORTABLE AC WELDER/AC GENERATOR



It's great for homeowners and anyone who needs portable AC stick welding and AC generator power!



Processes

  • Stick



Features & Benefits



LOW-LIFT™ GRAB BARS (PATENT PENDING)

  • More leverage for lifting unit on and off truck beds
  • Extra protection against product damage
  • Best in class feature



1-1/4" DIAMTER RUGGED TUBE FRAME

  • Great for all-around sturdy protection
  • Largest diameter tube feed in its class
  • Best in class feature



AC WELDING WITH UP TO 1/8" STICK ELECTRODE

  • Up to 140 amps of AC output for many applications



5,500 WATTS PEAK AC GENERATOR POWER (4,000 WATTS CONTINUOUS)

  • Many uses! Grinder, work lights, pump, motor starting, or emergency power
  • Plug in a Lincoln Power MIG® 140C or Power MIG® 180C for wire welding



Specifications



RATED OUTPUT 100A DC/25V/60%
125A DC/25V/20%
OUTPUT RANGE 70-140A
GENERATOR OUTPUT 5500 watts peak, 4000 watts continuous
TYPE OF ENGINE  Kohler CH395
HP AND SPEED 8.9 HP @ 3600 RPM
CYLINDERS 1
DIMENSIONS (H X W X D) 25.6" x 21.8" x 31.5" (651 x 553 x 800 mm)
NET WEIGHT 198 lb (89.81 kg)



Accessories



CATEGORY PRODUCT NUMBER PRODUCT NAME
General K1690-1 Lincoln GFCI Receptacle Kit



Wire Feeder



PRODUCT NUMBER PRODUCT NAME
K3269-1 Lincoln Magnum Pro 100SG Spool Gun
