  • Lincoln K3019-1 Arc Tracker® Data Monitor

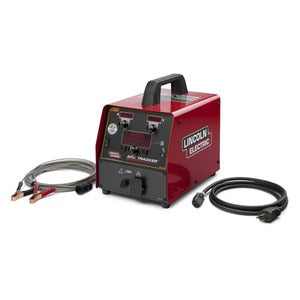

Lincoln K3019-1 Arc Tracker® Data Monitor

$ 2,834.00

Quantity


Pin It

Lincoln K3019-1 Arc Tracker® Data Monitor





ARC TRACKER - PORTABLE, POWERFUL WELD PERFORMANCE MONITORING



Connect the Arc Tracker between any DC welding power source and the work clamp to access a wide array of data monitoring information regarding your welding arc, including True Energy™.





ACCURATELY MONITOR WELDING PARAMETERS

  • Advanced digital controls sample the welding parameters at extremely high speeds



BROAD COMPATIBILITY

  • The Arc Tracker is compatible with any DC welding process power source and wire feeder



SIMPLE PLUG-N-PLAY DESIGN

  • Connect to any DC welding circuit, attach voltage sense leads and begin monitoring weld performance immediately



VARIABLE INPUT VOLTAGE

  • The Arc Tracker auto-senses any input voltage between 120 - 230 volts AC



ETHERNET CONNECTION

  • Communicates weld data status to your network via standard Ethernet



FACTORY QUALITY SYSTEM INTEGRATION

  • Easily calibrated for use in factory quality systems



CHECKPOINT™

  • A cloud-based system to view or analyze your welding data
  • Track equipment usage, store weld data, configure fault limits and more



WELD DATA MONITORING

  • Arc Tracker tools are available at www.powerwavessoftware.com including: Power Wave® Manager and Production Monitoring





Limitations - The Arc Tracker does not provide WFS, deposition related metrics, consumable package tracking or weldscore functionality.





INPUT POWER 120-230/1/50/60
INPUT CURRENT 0.8A on 120V AC
DIMENSIONS (H X W X D) 12" x 9" x 15" (305 x 220 x 380 mm)
NET WEIGHT 20 lbs (9.07 kg)





  • Detachable input cord 6 ft (2 m) with NEMA 5-15P plug and an IEC 60320 plug receptacle
  • (2) Polarity specific arc voltage remote sense leads 15 ft (4.5 m)
