  • Lincoln K4528-1 Magnum® PRO 100L Welding Gun, 10 ft, 4-Pin

Lincoln K4528-1 Magnum® PRO 100L Welding Gun, 10 ft, 4-Pin

$ 234.00

Quantity


Pin It

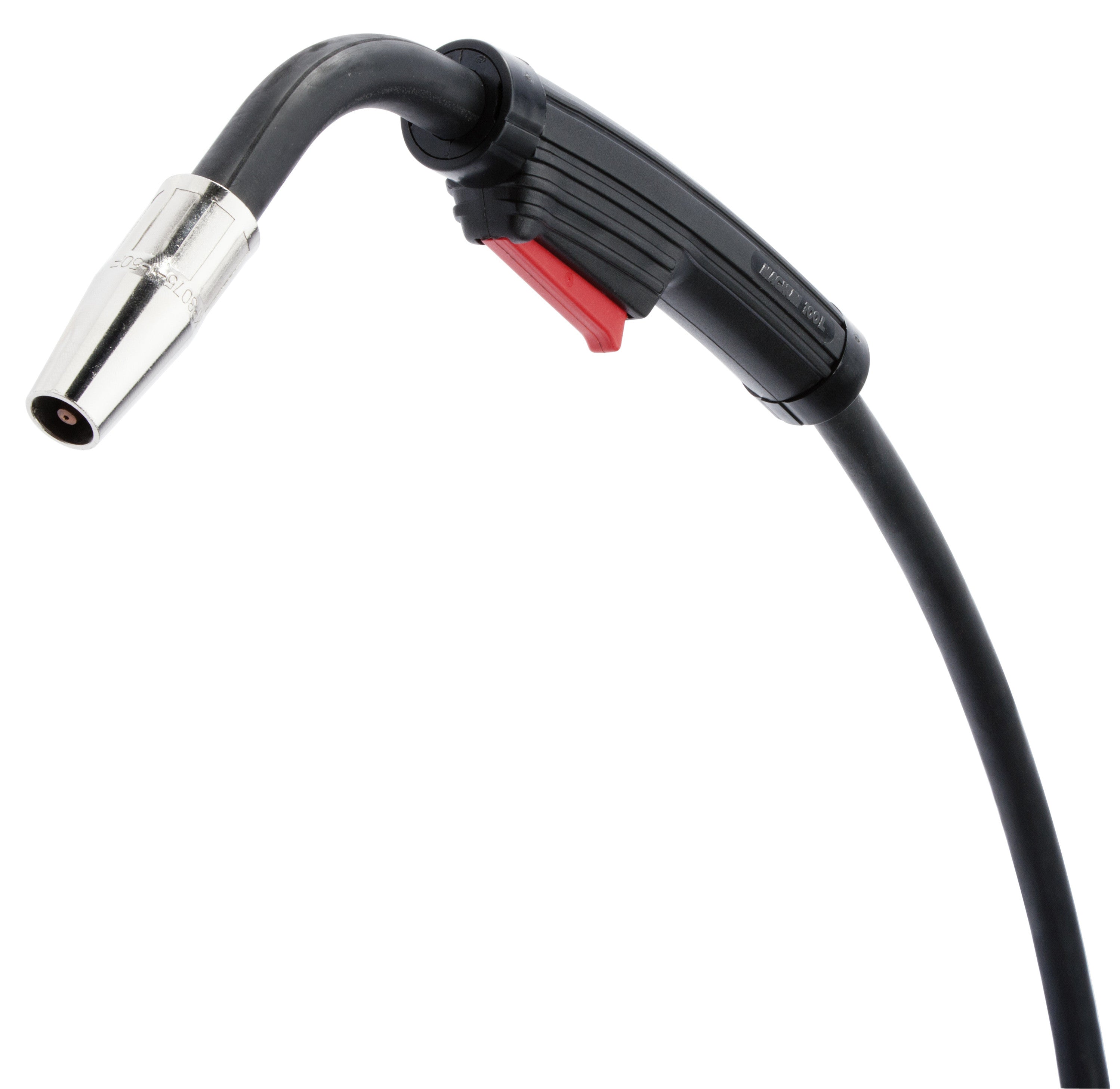

Lincoln K4528-1 Magnum® PRO 100L Welding Gun, 10 ft, 4-Pin





The Magnum PRO 100L is the most lightweight and compact gun the Magnum PRO L-series family. It is ideal for most home, farm, and small shop projects, as well as auto body and light maintenance and repair applications.



Processes:

  • MIG, Pulsed MIG, Flux-Cored



Wire Diameter Range:

  • .025" - .045" (0.6 - 1.22 mm)





PREMIUM TIP PERFORMANCE

  • The large mass of the Magnum PRO Copper Plus™ contact tips help disperse heat, keeping tips cooler and expanding their life
  • The Anti-Seize™ threads prevents tips from seizing in the diffuser



COMFORTABLE GRIP

  • The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun



100% DUTY CYCLE

  • The 100L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs







CABLE LENGTH 10 ft, 4-pin
NET WEIGHT 2.73 lbs (1.24 kg)
DUTY CYCLE AT RATED AMPERAGE 100%
RATED AMPERAGE 100A
WIRE DIAMETER .025" - .045" (0.6 - 1.2 mm)







  • Contact Tip KP2744-025T (Qty 1)
  • Contact Tip KP2744-035T (Qty 1)
  • Gas Diffuser (KP3076-1)
  • 0.5 (12.7 mm) Thread-On Gas Nozzle Flush (KP3076-1)
  • Gun Liner (KP35-40-15)
  • Integrated Gun Connector





PRODUCT NUMBER PRODUCT NAME
KP3076-1 Lincoln Magnum Pro 100L Gas Diffuser





PRODUCT NUMBER PRODUCT NAME
KP3082-60 Lincoln 60° Gun Tube for Magnum Pro 100L
