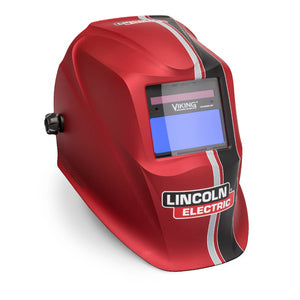

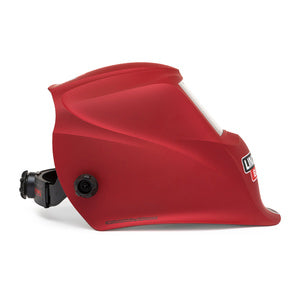

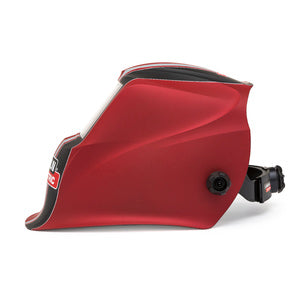

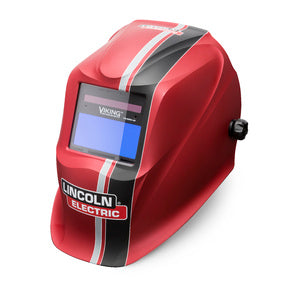

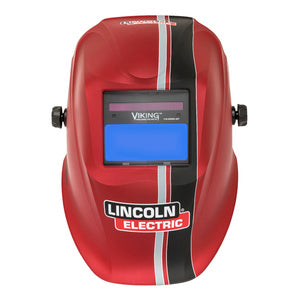

Lincoln K3495-3 Viking® 1740 Recode™ Welding Helmet

$ 141.52 $ 192.00

Lincoln K3495-3 Viking® 1740 Recode™ Welding Helmet





There's no shortage of features on their economically priced 1740 series auto-darkening welding helmet. Available in matte black & graphic finish.



  • Perfect 1/1/1/1 Optical Clarity
  • Variable 9-13 Shade, Sensitivity and Delay Control
  • Weld & Grind Mode
  • Hard hat and magnifying cheater lens compatible
  • User replaceable AAA batteries



Features

  • 6.3 Sq. Inch Auto-Darkening Viewing Area with Exclusive 4C® Lens Technology, 1/1/1/1 Optical Clarity
  • External Grind Control - Low profile, external button allows operator to switch between weld and grind mode in seconds
  • Patented Air Delivery - Unique baffling allows the user to adjust airflow direction
  • HEPA Filter - Multi-compontent filter system provides 99.97% particulate filtration at 0.3 microns.
  • Intelligent Blower with Extended Battery - Rechargeable lithium ion battery provides up to 16 hours of charge to the smart blower system featuring an LED display, audible & vibratory alerts and automatic speed adjustments





    Specifications:



    CARTRIDGE SIZE 4.33" x 3.54" (110 x 90mm)
    VIEW WINDOW SIZE 3.78" x 1.67" (96 x 42.5 mm)
    NUMBER OF SENSORS 2
    SHADE CONTROL Internal
    VARIABLE WELDING SHADES DIN 9 to 13 with grind
    SENSITIVITY CONTROL Variable Shade, Delay and Light Sensitivity
    LIGHT TO DARK SWITCHING TIME 0.00004 sec. (1/25000 sec)
    DELAY CONTROL (LIGHT TO DARK) 0.1 sec. min. - 1.0 sec. max
    TIG RATING 5 amps
    COMPLIANCE Compliance: ANSI Z87.1-2010/CSA Z94.3
    OPERATING TEMPERATURE 14 - 131 deg. F
    STORAGE TEMPERATURE -4 - 158 deg. F
    WEIGHT 18.6 oz (528 g)
    OPTICAL CLARITY 1/1/1/1 (EN 379)



    Included:



    • Decal Sheet
    • 2 Inside Cover Lenses
    • 5 Outside Cover Lenses



    Accessories:



    PRODUCT NUMBER PRODUCT NAME
    KP3283-1 Lincoln Viking 1740 Inside Clear Cover Lens Kit
    KP3284-2 Lincoln Viking 1740 ADF Cartridge Replacement Kit
    KP4100-1 Lincoln Ratchet Style Headgear with Sweatband
    KP2930-1 Lincoln Viking All Purpose Sweatband Package
    KP3047-1 Lincoln Halo Style Hard Hat Adapter
    KP3043-1 Lincoln Viking 1740/1840 Series Outside Cover Lens
    KP3486-1 Lincoln Viking® Slotted Hard Hat Adapter





    lincoln_electric_5_year_warranty
