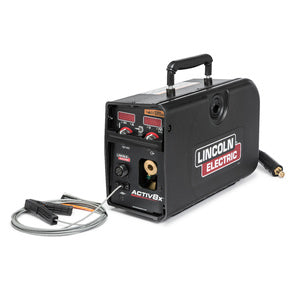

Lincoln K3519-1 Base Model Activ8X™ Wire Feeder

$ 3,137.00

Lincoln K3519-1 Base Model Activ8X™ Wire Feeder


PORTABLE, SEMIAUTOMATIC WIRE FEEDER



Activate your shipbuilding, offshore, or construction operations with Activ8X portable wire feeder with Crosslinc Technology. Small enough to fit through manways and light enough to carry around the site, the Activ8X wire feeder allows remote control of the power source without the need for control cables via CrossLinc Technology. This includes True Voltage Technology™ (TVT™) which ensures you get the voltage you set at the arc, even when you are hundreds of feet away from the power source.



Features and Benefits



RUGGED

  • Impact resistant, flame retardant case provides rugged durability for tough conditions
  • Potted PC Boards for moisture and corrosion protection
  • Maxtrac® Wire Drive System - Heavy-duty cast aluminum wire drive system provides reliable feeding and durability
  • Tachometer feedback delivers accurate wire feed spped



COMPACT

  • Lightest construction feeder on the market today
  • Accepts up to 8" (203mm) diameter wire spools



CONNECTED

  • CrossLinc Technology allows for remote output control over the welding leads
  • No control cable needed
  • True Voltage Technology (TVT) feature automatically compensates for voltage drops across long welding cables



Specifications



SOLID WIRE SIZE RANGE .023" - .052" (0.6 - 1.3 mm)
CORED WIRE SIZE RANGE .035" - 5/64" (0.9 - 2.0 mm)
WIRE SPEED RANGE IPM (M/MIN) 50-800 ipm (1.3-20.3 m/min)
DIMENSIONS (H X W X D) 11.8" x 7.6" x 19.8" (298 x 193 x 503 mm)
NET WEIGHT  27.5 lbs (12.47 kg)



Accessories



 CATEGORY PRODUCT NUMBER PRODUCT NAME
General K1500-1 Lincoln Gun Receiver Bushing for Lincoln Electric Guns
General K1500-2 Lincoln Gun Receiver Bushing for Tweco® #2-#4 Guns
General  K1500-3 Lincoln Gun Receiver Bushing for Tweco® #5 Guns
General K1500-4 Lincoln Gun Receiver Bushing for Miller® Guns
General K1500-5 Lincoln Gun Receiver Bushing for OXO™ Guns
General K489-7 Lincoln Fast-Mate Adapter Kit - 10 Series Feeders
General K3416-70 Lincoln Tweco® Style Plug (Male, 1/0 thru 2/0)
General K3417-70 Lincoln Tweco® Style Receptalce (Female, 1/0 thru 2/0)
General K3416-90 Lincoln Tweco® Style Plug (Male, 3/0 thru 4/0)
General K3417-90 Lincoln Tweco® Style Receptacle (Female, 3/0 thru 4/0)
General K852-70 Lincoln Twist Mate™ Plug - For 1/0 - 2/0 Cable
General K852-95 Lincoln Twist Mate™ Plug - For 2/0 - 3/0 Cable
General K1759-70 Lincoln Twist Mate™ Receptacle for 1/0 - 2/0 Cable
General K1759-95 Lincoln Twist Mate™ Receptacle for 2/0 - 3/0 Cable
General K2487-1 Lincoln Insulated CT40FS Female Connectors
General K586-1 Lincoln Deluxe Adjustable Gas Regulator and Hose Kit



Drive Rolls



PRODUCT NUMBER PRODUCT NAME
KP1696-030S Lincoln .023" - .030" Solid Wire Drive Roll Kit
KP1696-035S Lincoln .035" Solid Wire Drive Roll Kit
KP1696-045S Lincoln .045" Solid Wire Drive Roll Kit
KP1696-052S Lincoln .052" Solid Wire Drive Roll Kit
KP1696-1 Lincoln .035" - .045" Solid Wire Combination Drive Roll Kit
KP1696-2 Lincoln .040" Solid Wire Drive Roll Kit
KP1696-1/16S Lincoln 1/16" Solid Wire Drive Roll Kit
KP1697-035C Lincoln .030" - .045" Cored Wire Drive Roll Kit
KP1697-045C Lincoln .040" - .045" Cored Wire Drive Roll Kit
KP1697-052C Lincoln .052" Cored Wire Drive Roll Kit
KP1697-1/16C Lincoln 1/16" Cored Wire Drive Roll Kit
KP1697-068 Lincoln .068" - .072" Cored Wire Drive Roll Kit
KP1697-5/64 Lincoln 5/64" Solid/Cored Wire Drive Roll Kit
KP1697-3/32 Lincoln 3/32" Solid/Cored Wire Drive Roll Kit
KP1695-035A Lincoln .035" Aluminum Wire Drive Roll Kit
KP1695-040A Lincoln .040" Aluminum Wire Drive Roll Kit
KP1695-3/64A Lincoln 3/64" Aluminum Wire Drive Roll Kit
KP1695-1/16A Lincoln 1/16" Aluminum Wire Drive Roll Kit



Cables



PRODUCT NUMBER PRODUCT NAME
K1840-10 Lincoln Weld Power Cable - TM to Lug (1/0,350A, 60%) - 10 ft
K1841-25 Lincoln Weld Power Cable - TM to TM (1/0, 350A, 60%) - 25 ft
K1841-50 Lincoln Weld Power Cable - TM to TM (2/0, 350A, 60%) - 50 ft
K2485-3 Lincoln Weld Cable - Tweco® Male & Female (3/0, 600A, 60%) - 50 ft
K2484-3 Lincoln Weld Cable - Tweco® Male & 0.53 Lug (3/0, 600A, 60%) - 50 ft
K1842-10 Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 10 ft
K1842-35 Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 35 ft
K1842-60 Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 60 ft
K1842-110 Lincoln Weld Power Cable - Lug to Lug (3/0, 600A, 60%) - 110 ft
