  • Lincoln K4498-1 Power MIG® 140 MP® Multi-Process Welder

Lincoln K4498-1 Power MIG® 140 MP® Multi-Process Welder

$ 969.00

Quantity


Pin It

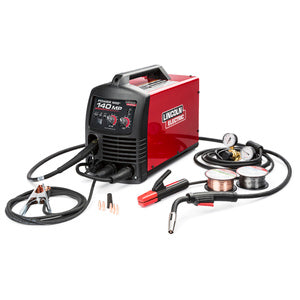

Lincoln K4498-1 Power MIG® 140 MP® Multi-Process Welder





This multiprocess capable unit that is lightweight and portable connects to 120V household power and is an excellent choice for MIG, DC TIG, Stick and Flux-Cored welding.





VERSATILE PERFORMANCE

  • Multiprocess unit capable of MIG welding 30-140 amps, DC TIG welding 10-120 amps and Stick welding 25-90 amps



EASY TO USE

  • Simple two knob operation for controlling wire feed speed and voltage
  • Single button allows for easy process selection changes



COMPACT DESIGN

  • Lightweight and portable at 34.5 lbs
  • Conveniently plugs into household 120V power





PROCESSES
  • MIG
  • Flux-Cored
  • Stick
  • DC TIG
INPUT POWER 115/1/60
    RATED OUTPUT 95A/18.75V/60%
    INPUT CURRENT 20A
      OUTPUT RANGE 30 - 140A
        SOLID WIRE SIZE RANGE .025" - .035" (0.635 - 0.9 mm)
          CORED WIRED SIZE RANGE .030" - .035" (0.8 - 0.9 mm)
          WIRED FEED SPEED RANGE 40 - 500
          DIMENSIONS (H x W x D) 14" x 10.15" x 18.6" (357 x 258 x 472 mm)
          NET WEIGHT 35 lb (15.88 kg)





          MAGNUM® PRO 100L GUN



          • 10 ft cable assembly with brass connection and 8-pin trigger connector (K530-7)
          • .025" (0.6 mm) tapered contact tips (3 Pack of KH831)
          • .035" (0.9 mm) tapered contact tips (3 Pack of KH833)
          • Gasless nozzle for Innershield® welding (KH836)
          • Gas nozzle for MIG welding (KH835)
          • Spindle adapter for 8" (203 mm) diameter spools (KH720)
          • .025" - .035" (0.6 - 0.9 mm) wire diameter dual track drive roll for MIG and flux-cored welding (KP2948-1)



          SHIELDING GAS APPARATUS



          • Harris® 3000290 Gas Regulator (S25805)
          • Harris® 52" (1.3 m) hose (S19303) for use with Ar/CO2 blend gases



          WELDING WIRE



          • Sample spool of .025" (0.6 mm) diameter SuperArc® L-56® premium MIG wire
          • Sample spool of .035" (0.9 mm) diameter Innershield® NR®-211-MP flux-cored wire



          OTHER



          • Work clamp and 10 ft (3.0 m) cable
          • Instruction manual
          • Quick Start Guide
          • Electrode holder with 10 fit cable for stick welding





          CATEGORY PRODUCT NUMBER PRODUCT NAME
          General  K2275-1 Lincoln Welding Cart
          General K1782-16 Lincoln PTA-9 TIG Torch
          General  K4360-1 Lincoln Magnum PRO 100SG Spool Gun
          General  K4361-1 Lincoln TIG Foot Pedal
