Lincoln K4529-1 Magnum® PRO 175L Welding Gun, 10 ft

$ 400.00
By Lincoln Electric
View details

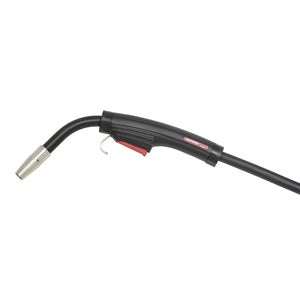

Lincoln K4529-1 Magnum® PRO 175L Welding Gun, 10 ft




The Magnum Pro 175L is a compact and powerful addition to the Magnum PRO L-series family. It is ideal for home, farm and small shop projects, as well as auto body work and maintenance and repair applications.



    Processes

    • MIG, Pulsed MIG, Flux-Cored



    Wire Diameter Range

    • .025" - .045" (0.6 - 1.2 mm)


    Features & Benefits



    PREMIUM TIP PERFORMANCE

    • The large mass of the Magnum PRO Copper Plus™ contact tips help disperse heat, keeping tips cooler and expanding their life
    • The Anti-Seize™ threads prevent tips from seizing in the diffuser



    COMFORTBALE GRIP

    • The lightweight curved handle with soft rubber over molding enhances comfort and allows for an easier grip of the gun



    100% DUTY CYCLE

    • The 175L runs at 100% duty cycle using mixed gas, helping it withstand tough jobs




    Specifications



    RATED AMPERAGE 175
    CABLE LENGTH 10 ft
    WIRE DIAMETER .025" - .045" (0.6 - 1.2 mm)
    DUTY CYCLE AT RATED AMPERAGE 100%
    NET WEIGHT 4.35 lb (1.97 kg)



    Included



    • Contact Tip KP2744-025T (Qty. 1)
    • Contact Tip KP2744-035T (Qty. 1)
    • Gas Diffuser (KP3076-1)
    • 0.5" (12.7 mm) Thread-On Gas Nozzle Flush (KP3075-1-50F)
    • Gun Liner (KP35-40-15)
    • Integrated Gun Connector



    Contact Tips



    PRODUCT NUMBER PRODUCT NAME
    KP2744-025T     		Lincoln .025" Copper Plus 350A Tapered Contact Tip
    KP2744-030T Lincoln .030" Copper Plus 350A Tapered Contact Tip
    KP2744-035T Lincoln .035" Copper Plus 350A Tapered Contact Tip
    KP2744-040T Lincoln .040" Copper Plus 350A Tapered Contact Tip
    KP2744-045T Lincoln .045" Copper Plus 350A Tapered Contact Tip



    Nozzles



    PRODUCT NUMBER PRODUCT NAME
    KP3084-1 Lincoln Gasless Nozzle for Magnum Pro 100L
    KP3075-1-38F Lincoln Magnum Pro 100L Thread-On Gas Nozzle
    KP3075-1-38S Lincoln Magnum Pro 100L Slip-On 1/4 Stick Out Gas Nozzle
    KP3075-1-50F Lincoln Magnum Pro 100L Thread-On Flush Gas Nozzle
    KP3075-1-50S Lincoln Magnum Pro 100L Slip-On Flush Gas Nozzle



    Diffusers



    PRODUCT NUMBER PRODUCT NAME
    KP3076-1 Lincoln Magnum Pro 100L Gas Diffuser



    Liners



    PRODUCT NUMBER PRODUCT NAME
    KP35-40-15 Lincoln .023" - .035" Liner, 15 ft
    KP45-40-15 Lincoln .035" - .045" MIG Gun Liner, 15 ft
    KP1959-1 Lincoln Aluminum Cable Liners .035" For Magnum Pro 100L, 15 ft



    Gun Tubes



    PRODUCT NUMBER PRODUCT NAME
    KP4087-1 Lincoln Gun Tube for Magnum Pro 175L
