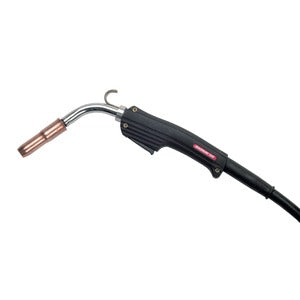

Lincoln K497-1 Magnum® 200 Welding Gun - .035" - .045" Liner
$ 477.00
Unit price
/
Unavailable
Couldn't load pickup availability
Lincoln K497-1 Magnum® 200 Welding Gun - .035" - .045" Liner
SEMIAUTOMATIC GAS-SHIELDED GUNS
Magnum® guns for MIG or flux-cored welding feature our classic curved handle and are available in a number of amperage ranges for use in many applications.
Features & Benefits
SMALL, LIGHTWEIGHT GUN
- Intended for light job shop and fabrication applications
- Best suited for welding on thin materials using .025" - .030" (0.6 - 0.8 mm) wire
ONE-PIECE MODULAR TRIGGER ASSEMBLY
- Molded out of high heat resistant material to withstand head and spatter and ensure long life
GUN TUBE DESIGN
- Armored with an electrically insulated metal jacket optimizing fine wine welding performance
ABRASION-RESISTANT, EXTRUDED RUBBER JACKET
- Adds strength and long life to the cable
CLASSIC CURVED HANDLE
- Lightweight and balanced, providing a comfortable grip to reduce fatigue
ROTATING GUN TUBE AND GUN HANGER CLIP
- Allow any number of hand positions to reduce fatigue or fit into tight spaces
Specifications
| K497-1 | K497-2 | |
| DUTY CYCLE AT RATED AMPERAGE | 60% | 60% |
| RATED AMPERAGE | 200 | 200 |
| GUN TYPE | Handheld | Handheld |
|
CABLE LENGTH |
15 ft | 10 ft |
| WIRE DIAMETER | .025" - .045" | .025" - .045" |
| COOLING | Air Cooled | Air Cooled |
| NET WEIGHT | 11 lbs | 6.67 lbs |
Included
- Contact Tip
- Gas Diffuser
- Gas Nozzle
- Insulator
- Cable Liner
- Gun Tube (60°)
Accessories
| CATEGORY | PRODUCT NUMBER | PRODUCT NAME |
| General | K466-1 | Lincoln LN-7-8-9 & LN-25 Series Connector Kit |
| General | K466-10 | Lincoln LF-72-74, LN-25 Pro, Power Feed 25M Connector Kit |
| General | K466-6 | Lincoln Power MIG & Power Wave C300 Gun Connector Kit |
Contact Tips
| PRODUCT NUMBER | PRODUCT NAME |
| KP14-30 | Lincoln .030" Contact Tip |
| KP14-35 | Lincoln .035" Contact Tip |
| KP14H-35 | Lincoln .035" Heavy Duty Contact Tip |
| KP14-45 | Lincoln .045" Contact Tip |
| KP14H-45 | Lincoln .045" Heavy Duty Contact Tip |
| KP14AH-364 | Lincoln 3/64" Heavy Duty Contact Tip |
Diffusers
| PRODUCT NUMBER | PRODUCT NAME |
| KP52-23 | Lincoln .025" - .030" Magnum Gun Gas Diffuser |
| KP52FN | Lincoln .025" - .-45" Magnum Gun Gas Diffuser |
Nozzles
| PRODUCT NUMBER | PRODUCT NAME |
| KP22-37 | Lincoln .37" Slip Adj. Gas Nozzle |
| KP22-50 | Lincoln .50" Slip Adj. Gas Nozzle |
| KP22-62 | Lincoln .62" Slip Adj. Gas Nozzle |
Insulators
| PRODUCT NUMBER | PRODUCT NAME |
| KP32 | Lincoln Slip-On Nozzle Insulator Assembly |
Liners
| PRODUCT NUMBER | PRODUCT NAME |
| KP42-3035-15 | Lincoln .030" - .035" Cable Liner (15 ft) |
| KP42-4045-15 | Lincoln .035" - .045" Cable Liner (15 ft) |
| KP44N-3545-15 | Lincoln .035" - 3/64" Aluminum Cable Liner (15 ft) |
Gun Tubes
| PRODUCT NUMBER | PRODUCT NAME |
| KP1929-1 | Lincoln 45°, 400 Amp, Magnum Gun Tube Assembly |
| KP2028-1 | Lincoln 60° Gun Tube Assembly |
| KP1928-2 | Lincoln 60°, 300 Amp Magnum Gun Tube Assembly |
| KP1928-1 | Lincoln 60°, 400 Amp Magnum Gun Tube Assembly |
