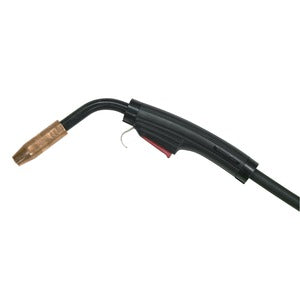

Lincoln K524-5 Magnum® 250SP Fixed Welding Gun - 12.5 ft
$ 581.00
Lincoln K524-5 Magnum® 250SP Fixed Welding Gun - 12.5 ft
MIG AND FLUX-CORED GAS SHIELDED GUN AND CABLE ASSEMBLY
Magnum® MIG or flux-cored guns are designed with the welder in mind. Ergonomic and lightweight, you'll never want to put these guns down! These air-cooled guns are designed to be used with gas-shielded (MIG) and gas-shielded flux-cored (FCAW) continuous feed arc welding wires.
Processes:
- MIG, Flux-Cored Gas-Shielded
Wire Diameter Range:
- .035" - 045" (0.9 - 1.2 mm)
- One piece modular trigger assembly is molded out of high heat thermoset material to withstand heat and spatter and ensure long life
- The gun tube is buffed to a high shine which helps reflect radiant heat from the world
- Abrasion resistant, extruded rubber jacket adds strength and long life to the cable
- Gun tube design optimizes fine wire welding performance, the outside of the gun is armored with an electrically insulated metal jacket, eliminating wear problems of other softer insulation materials
- The internal extruded tube offers excellent gas sealing integrity
- Magnum® gun expendable parts are compatible with other leading brands
| DUTY CYCLE AT RATED AMPERAGE | 60% |
| RATED AMPERAGE | 250 |
| GUN TYPE | Handheld |
|
CABLE LENGTH |
12.5 ft |
| WIRE DIAMETER | .035" - .045" (0.9 - 1.2 mm) |
| COOLING | Air Cooled |
| NET WEIGHT | 6.6 lbs |
| PRODUCT NUMBER | PRODUCT NAME |
| KP14-25 | Lincoln .025" Contact Tip |
| KP14-30 | Lincoln .030" Contact Tip |
| KP14-35 | Lincoln .035" Contact Tip |
| KP14-40 | Lincoln .040" Contact Tip |
| KP14-45 | Lincoln .045" Contact Tip |
| KP14A-364 | Lincoln 3/64" Contact Tip |
| KP14AH-364 | Lincoln 3/64" Heavy Duty Contact Tip |
| KP14H-35 | Lincoln .035" Heavy Duty Contact Tip |
| KP14H-40 | Lincoln .040" Heavy Duty Contact Tip |
| KP14H-45 | Lincoln .045" Heavy Duty Contact Tip |
| KP14T-25 | Lincoln .025" Tapered Contact Tip |
| KP14T-30 | Lincoln .030" Tapered Contact Tip |
| KP14T-35 | Lincoln .035" Tapered Contact Tip |
| KP14T-40 | Lincoln .040" Tapered Contact Tip |
| KP14T-45 | Lincoln .045" Tapered Contact Tip |
| KP2010-3B1 | Lincoln .030" Notched Contact Tip |
| KP2010-4B1 | Lincoln .035" Notched Contact Tip |
| KP2010-5B1 | Lincoln 3.64" Notched Contact Tip |
