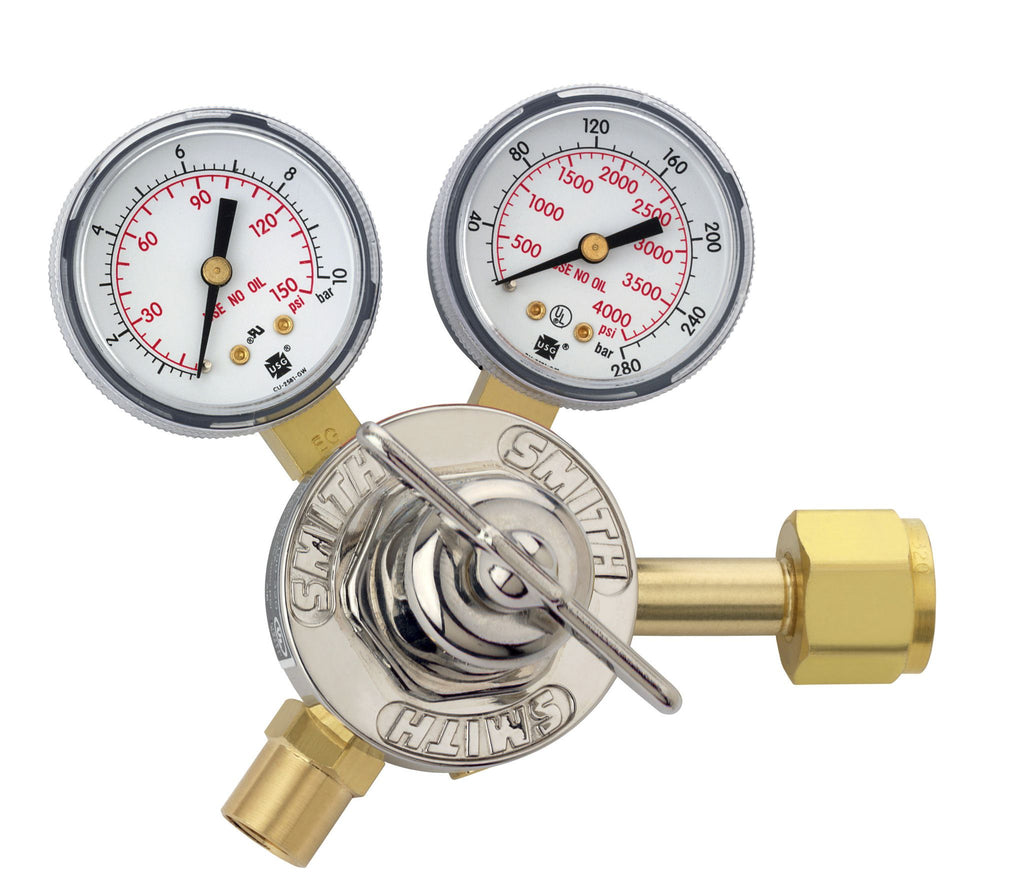

Miller 30-150-320 0-150 PSIG MD CO2 Regulator



Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered seat technology for extended seat and regulator life. Filtered seats prevent contamination from entering the seating area, reducing repair costs and downtime. These highly accurate regulators are manufactured with a rugged forged body, corrosion-resistant bright nickel-plated bonnet and highly durable neoprene composite diaphragm.



Features:



  • Sure-Seat Filtered High-Pressure Seat Assembly
    • Series 30 single-stage regulators are extremely durable and contain our exclusive Sure Seat filtered technology
    • Filtered seats prevent contamination from entering the seating area, reducing repair cost and downtime
  • Neoprene Composite Diaphragm
    • Highly durable neoprene composite diaphragm offers precise adjustment of outlet pressure and extended service life
  • Color-Coded Labels
    • Identifies supply performance capabilities, easy gas service identification and technical information
  • Nickel-Plated Bonnet
    • The nickel-plated bonnet, along with brass body, protects against corrosion
  • Shatter-Resistant Gauge Lenses
    • 2.0 inch corrosion-resistant polished brass gauges with shatter-resistant
  • True Blue Warranty
  • External Relief Valve
    • Protects regulator from damage do to inadvertent high-pressure surge
    • Relief valve will release excessive pressure and automatically reset



 PROCESSES
  • Oxy-Fuel Cutting
  • Welding
  • Heating
DISPLAY DELIVERY PRESSURE 150 PSIG (10 bar)
DISPLAY INLET CONNECTION CGA 320
DISPLAY MAX INLET PRESSURE 3000 PSIG (207 bar)
GAS CO2
GAUGE SIZE 2
OUTLET CONNECTION 5/8-18 RH Internal Thread
SIZE HD OR MD MD
