Profax WPC-12 Welding Positioner Chuck

$ 670.00
By Profax

Profax WPC-12 12-inch Welding Positioner Chuck



The Profax WPC-12 Welding Positioner Chuck is a 12 inch chuck made to assist in the holding and positioning of light to medium duty materials. Get the right machine with the right accessories to put your shop above the rest with Profax.



Profax WPC-12 Welding Positioner Chuck Features:



  • 3 jaw self centering
  • Reversible jaws
  • Easy mounting
  • T-Handle wrench included with chucks

Works with the Profax WP-500 and WP-1000 Welding Positioners



Profax WPC-12 Welding Positioner Chuck Specifications:

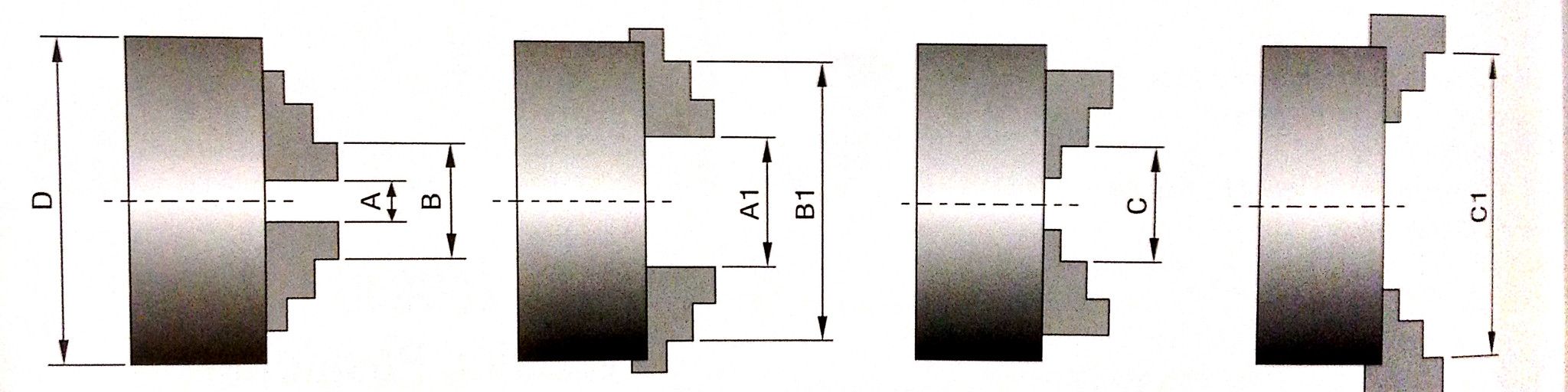

Refer to image 2 for dimensions



  • Diameter (D): 12 1/2 inches
  • Clamping Range (A - A1): 1/2 - 5 1/2 inches
  • I.D. Range (B - B1): 3 3/4 - 12 3/8 inches
  • External Jaw Clamping Range (C - C1): 3 7/8 - 12 3/8 inches
  • Weight: 104 lbs.
  • Used On Profax Positioners: WP-500 / WP-1000
