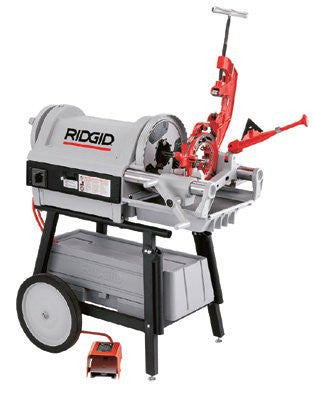

Ridgid 26092 Model 1224 Power Threading Machine, 1/2 in to 4 in (NPT) Pipe Capacity (1 EA)

$ 10,445.60

Quantity


Pin It

Ridgid 26092 Model 1224 Power Threading Machine, 1/2 in to 4 in (NPT) Pipe Capacity (1 EA)



Model 1224 Power Threading Machine, 1/2 in to 4 in (NPT) Pipe Capacity



Ridgid 26092 Model 1224 Power Threading Machine, 1/2 in to 4 in (NPT) Pipe Capacity Features:




  • 1/4"-2" Universal Die Head

  •

  • 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads

  •

  • A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced

  •

  • An induction motor insures sound levels well within the limits set by the regulating authorities

  •

  • Constant and proper lubrication of dies and workpiece with through-head oiling

  •

  • Gear Box: Two-speed gear box 3:1 ratio

  •

  • Hammer-type chuck with replaceable rocker-action jaw inserts

  •

  • Motor Control: Reverse/off/forward, heavy-duty rotary-type and integral foot switch

  •

  • Self-priming, GEROTO-type, automatic-reversing, constant-flow pump

  •

  • The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C

  •

  • Threads 1/4"-2" pipe at 36 RPM and 2 1/2"- 4" at 12 RPM

  •

  • Through-die head oiling
