  • Tweco 23-75 (1230-1130) 23 Series 3/4" Standard Thread-On Tip Recess Nozzle (2 Pack)

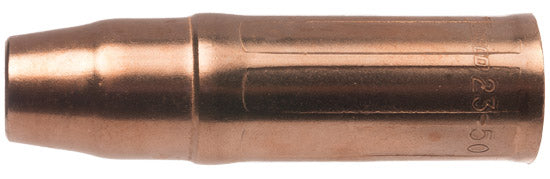

Tweco 23-75 (1230-1130) 23 Series 3/4" Standard Thread-On Tip Recess Nozzle (2 Pack)

$ 41.88

Quantity


Pin It

Tweco 23-75 (1230-1130) 23 Series 3/4" Standard Thread-On Tip Recess Nozzle (2 Pack)





Professional & Weldskill 23 Series Air Cooled Thread-On Nozzles offered in Standard, Tapered, and Heavy Duty varieties.



3-Piece Nozzle Design Includes:



  • Nozzle Housing - Cut and Formed form 122 DHP copper alloy tubing
  • Nozzle Insert - machined from a solid brass alloy and machining the internal threads to match the gas diffuser
  • Nozzle Insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser



(Call for high usage quote - 641-201-1352)





  • Easy identification - Part No. rolled stamped on the outside surface
  • Tapered nozzle 3-piece design - does not require an additional insulator
  • Nozzle threads onto the gas diffuser





PART NUMBER 23-75
MODEL 1230-1130
SERIES 23
COOLING Air
INSIDE DIAMETER 3/4" (19.1 mm)
NOZZLE DESIGN Standard
NOZZLE STYLE Thread-On
NOZZLE/CONTACT TIP RELATIONSHIP 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
OUTSIDE DIAMETER 0.875" (22.2 mm)





 PART NUMBER MODEL INSIDE DIAMETER NOZZLE DESIGN NOZZLE/CONTACT TIP RELATIONSHIP
23-37 1230-1100 3/8" (9.5 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23-37F 1230-1102 3/8" (9.5 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
23T-37 1230-1300 3/8" (9.5 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23T-37F 1230-1302 3/8" (9.5 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
23-50 1230-1110 1/2" (12.7 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23-50F 1230-1112 1/2" (12.7 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
23H-50 1230-1210 1/2" (12.7 mm) Heavy Duty 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23-62 1230-1120 5/8" (15.9 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23-62F 1230-1122 5/8" (15.9 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
23H-62 1230-1220 5/8" (15.9 mm) Heavy Duty 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23H-62F 1230-1222 5/8" (15.9 mm) Heavy Duty Flush to 1/16" (1.6 mm) Tip Recess
23-75 1230-1130 3/4" (19.1 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
23-75F 1230-1132 3/4" (19.1 mm) Standard Flush to 1/16" Tip Recess
(3.2 mm - 3.97 mm)
23H-75 1230-1230 3/4" (19.1 mm) Heavy Duty 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
