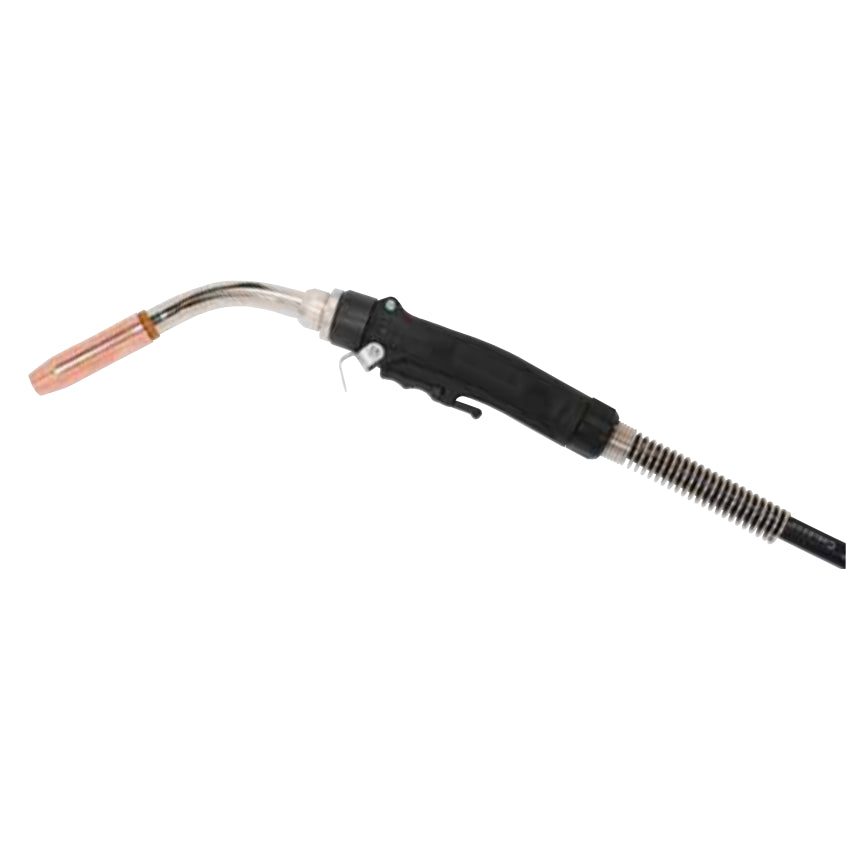

Tweco EL415L-116 (1048-1191) 1/16" Standard Eliminator® 450A MIG Gun - Lincoln® Style
$ 1,213.00
Unit price
/
Unavailable
By Tweco
Couldn't load pickup availability
Tweco EL415L-116 (1048-1191) 1/16" Standard Eliminator® 450A MIG Gun - Lincoln® Style
Features:
- Operator appeal - with ergonomic handle to reduce operator fatigue and extended trigger length to reduce radiated heat to welder's gloved hand
- Field repairable - split-half handle case provides access for ease of repair with field repairable mechanical cable connections available and spare trigger leads in Cablehoz®
- Improved performance patented contact tip - with no threads cam style interface between contact tip & gas diffuser for increased surface contact
- Ball & socket conductor tube design - with articulating conductor tube and three layer conductor tube construction (Copper Tube/Silicon Resin Fiberglass Insulator Metal Jacket)
- Wide welding applications - spray transfer & pulse welding modes straight CO2 or mixed gases
Standard Options Include:
- Rear Connector
- Standard Conductor Tube
- Conduit Liner - 44 Series
| PART NUMBER | EL415L-116 |
| STOCK NUMBER | 1048-1191 |
| WELDING PROCESSES |
|
| APPLICATION USAGE | Heavy Duty |
| AMPS | 450 Amps |
| DUTY CYCLE | 60% |
| GAS | Carbon Dioxide |
| WIRE SIZE | Up to 1/16" (1.6 mm) |
| COOLED | Air |
| REAR CONNECTOR STYLE | Lincoln® Style |
| LENGTH | 15 ft (4.6 m) |
