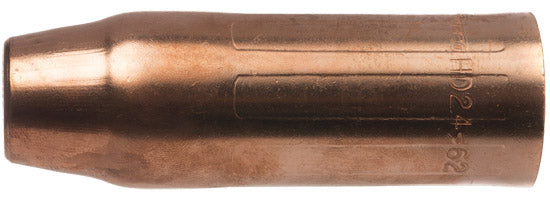

Tweco HD24-50 (1240-1240) HD24 Series 1/2" Standard Slip-On Tip Recess Nozzle (2 Pack)





Tweco HD 24 Series Air Cooled Nozzles for Classic No. 4, Spray Master 450, and Supra 450 XT MIG guns are self insulated and compatible with HD54 Series Gun Diffusers.



3-Piece Nozzle Design Includes:



  • Nozzle Housing - Cut and Formed form 122 DHP copper alloy tubing
  • Nozzle Insert - machined from a solid brass alloy and machining the internal threads to match the gas diffuser
  • Nozzle Insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser



(Call for high usage quote - 641-201-1352)





  • Use in heavy duty welding applications up to 450 amps
  • Easy identification - Part No. rolled stamped on the outside surface
  • 3-piece design - does not require an additional insulator





PART NUMBER HD24-50
MODEL 1240-1240
SERIES HD24
COOLING Air
INSIDE DIAMETER 1/2" (12.7 mm)
NOZZLE DESIGN Standard
NOZZLE STYLE Slip-On
m)NOZZLE/CONTACT TIP RELATIONSHIP 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 m
OUTSIDE DIAMETER 1.117" (28.4 mm)





 PART NUMBER MODEL INSIDE DIAMETER NOZZLE DESIGN NOZZLE/CONTACT TIP RELATIONSHIP
HD24-50 1240-1240 1/2" (12.7 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24L-50 1240-1200 1/2" (12.7 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24L-50F 1240-1204 1/2" (12.7 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
HD24-62 1240-1241 5/8" (15.9 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24-62F 1240-1236 5/8" (15.9 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
HD24L-62 1240-1201 5/8" (15.9 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24L-62F 1240-1205 5/8" (15.9 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
HD24LB-62 1240-1216 5/8" (15.9 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24LB-62F 1240-1219 5/8" (15.9 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
HD24-75 1240-1242 3/4" (19.5 mm) Standard 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24-75F 1240-1237 3/4" (19.5 mm) Standard Flush to 1/16" (1.6 mm) Tip Recess
HD24L-75 1240-1202 3/4" (19.5 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
HD24L-75F 1240-1206 3/4" (19.5 mm) Tapered Flush to 1/16" (1.6 mm) Tip Recess
HD24LB-75 1240-1217 3/4" (19.5 mm) Tapered 1/8" - 5/32" Tip Recess
(3.2 mm - 3.97 mm)
