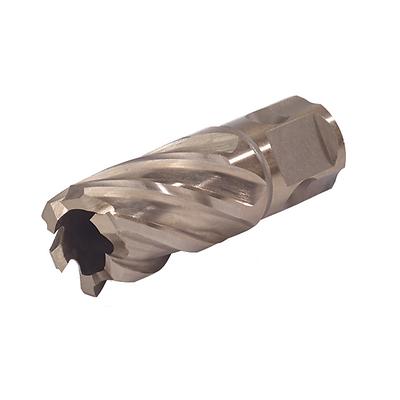

Walter 05E105 1 5/16" x 1" SST Core Cut Universal Shank Cutter (1 Cutter)

$ 68.83
By Walter

Walter 05E105 1 5/16" x 1" SST Core Cut Universal Shank Cutter (1 Cutter)





Super Speed Tip (SST) Core Cutters are made with state-of-the-art surface treatment technology that removes porosity during the fabrication process. This creates a perfectly smooth finish which allows for a better evacuation of material while drilling. It also helps to improve product life and reduce drilling time as it decreases friction with the work surface, which in turn reduces the amount of heat generated.



  • Diameter: 1 5/16"
  • Length: 1"
  • Fully ground extra large flutes
  • Modern tooth design and cutter geometry
  • Special bronze SST surface treatment
  • Universal shank



Materials

  • Aluminum
  • Stainless steel
  • Steel
  • Structural Steel



Applications

  • Drilling 1/2" to 2 3/8" diameter holes
  • Drilling with magnetic drilling units
  • Drilling with stationary machines



RPM CHART





PRODUCT NUMBER

DIAMETER

LENGTH

05E007 7/16" 1"
05E008 1/2" 1"
05E009 9/16" 1"
05E010 5/8" 1"
05E011 11/16" 1"
05E012 3/4" 1"
05E013 13/16" 1"
05E014 7/8" 1"
05E015 15/16" 1"
05E100 1" 1"
05E101 1 1/16" 1"
05E102 1 1/8" 1"
05E103 1 3/16" 1"
05E104 1 1/4" 1"
05E105 1 5/16" 1"
05E106 1 3/8" 1"
05E107 1 7/16" 1"
05E108 1 1/2" 1"
05E307 7/16" 2"
05E308 1/2" 2"
05E309 9/16" 2"
05E310 5/8" 2"
05E311 11/16" 2"
05E312 3/4" 2"
05E313 13/16" 2"
05E314 7/8" 2"
05E315 15/16" 2"
05E400 1" 2"
05E401 1 1/16" 2"
05E402 1 1/8" 2"
05E403 1 3/16" 2"
05E404 1 1/4" 2"
05E405 1 5/16" 2"
05E406 1 3/8" 2"
05E407 1 7/16" 2"
05E408 1 1/2" 2"
05E409 1 9/16" 2"
