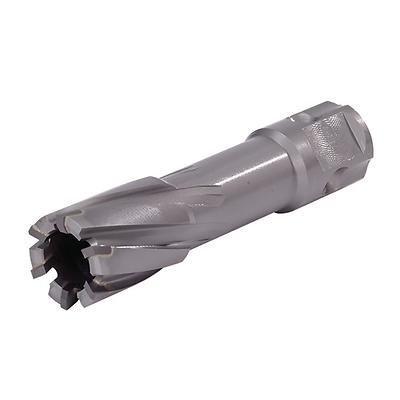

Walter 05H313 13/16" x 2" Carbide Universal Shank Core Cut Annular Cutters (1 Cutter)

$ 87.43
By Walter

Walter 05H313 13/16" x 2" Carbide Universal Shank Core Cut Annular Cutters (1 Cutter)





Walter Carbide Core Cut annular cutters accurately drill large diameter holes in a variety of hard or abrasive materials such as stainless steel, cast iron, tough alloys or composite materials. They outperform and outlast conventional HSS cutters and allow for higher speed and feed rates while requiring less effort to cut through some of the industry's toughest metals.



  • Diameter: 13/16"
  • Length: 2"
  • Aggressivity and efficiency during the life-time
  • Highest quality
  • Ideal for drilling hard or uneven materials
  • New flute and body design
  • Outstanding performance
  • Top quality, extra hard carbide inserts



Materials

  • Alloys
  • Brass
  • Carbon steel
  • Cast iron
  • Iron and steel
  • Stainless steel
  • Steel rail
  • Steel,
  • Aluminum
  • Copper
  • Brass



Applications

  • Drilling holes on site or on large work pieces
  • Drilling with magnetic drilling units
  • For working on curved surfaces
  • Ideal for working on stainless steel



RPM CHART





PRODUCT NUMBER

DIAMETER

LENGTH

05H008 1/2" 1"
05H009 9/16" 1"
05H010 5/8" 1"
05H011 11/16" 1"
05H012 3/4" 1"
05H013 13/16" 1"
05H014 7/8" 1"
05H015 15/16" 1"
05H100 1" 1"
05H101 1 1/16" 1"
05H102 1 1/8" 1"
05H103 1 3/16" 1"
05H104 1 1/4" 1"
05H105 1 5/16" 1"
05H106 1 3/8" 1"
05H107 1 7/16" 1"
05H108 1 1/2" 1"
05H308 1/2" 2"
05H309 9/16" 2"
05H310 5/8" 2"
05H311 11/16" 2"
05H312 3/4" 2"
05H313 13/16" 2"
05H314 7/8" 2"
05H315 15/16" 2"
05H400 1" 2"
05H401 1 1/16" 2"
05H402 1 1/8" 2"
05H403 1 3/16" 2"
05H404 1 1/4" 2"
05H405 1 5/16" 2"
05H406 1 3/8" 2"
05H407 1 7/16" 2"
05H408 1 1/2" 2"
