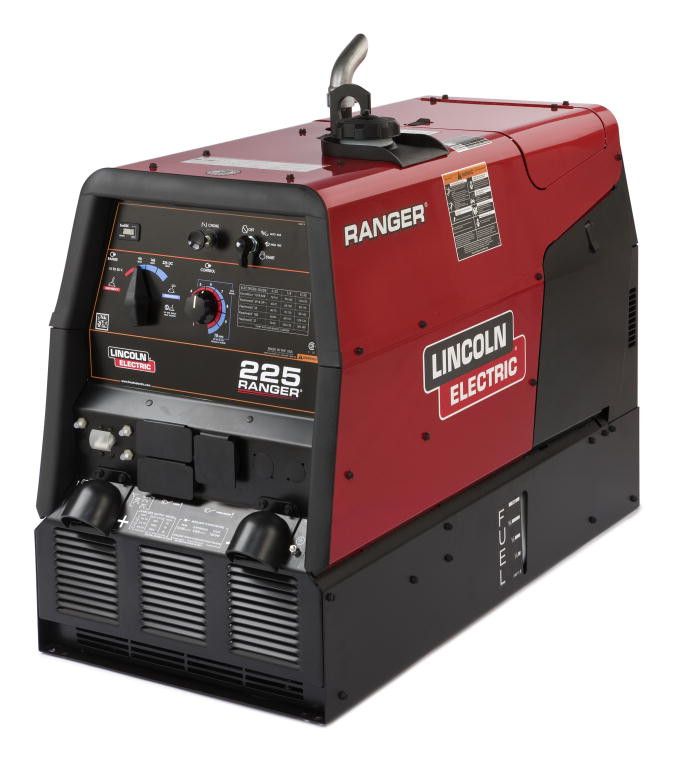

Lincoln K2857-1 Ranger® 225 Engine Driven Welder
Lincoln K2857-1 Ranger® 225 Engine Driven Welder
ARM YOURSELF WITH THE RIGHT WELDER
The Ranger® 225 is a multi-process, engine-driven welder designed for a variety of processes - stick, TIG, MIG or flux-cored. Whatever the process or application, arm yourself to get the job done and get it done for the first time.
- Stick, TIG, MIG, Flux-Cored
TOTALLY ENCLOSED CASE
- Engine is fully protected
- 3 service access doors
- Low Noise - 76.4 dBA sound level at 23 ft. (7 m) 100.7 dB sound power (Lwa) at rated output
VERSATILE DC WELDING
- Smooth DC welding output for a broad range of stick electrode types
- MIG and Flux-Cored capable (with optional equipment)
10,500 WATTS PEAK SINGLE-PHASE AC GENERATOR POWER
- Peak for motor starting
- 9,000 watts continuous power for generator, plasma cutter or inverter welder
- Lights, grinder, power tools
23 HP KOHLER® GASOLINE ENGINE
- 2 cylinder, 4 cycle overhead valve air-cooled design
- Oil drain extension for easy oil changes
- 12 gallon tank for extended run times
- Only 1.5 gallons/hour at 210 amps DC, 25V, 100% duty cycle
- Visual fuel level gauge on both sides of unit
- Welding and AC Generator Outputs Rated at 104°F (40°C)
|225A DC CC/25V/40%
210A DC CC/25V/100%
200A DC CV/20V/100%
|10500 watts peak, 9000 watts continuous
|TYPE OF ENGINE
|Kohler OHV Command CH730
|HP AND SPEED
|DIMENSIONS (H X W X D)
|29.9" x 21.5" x 42.3" ( 759 x 546 x 1074 mm)
|514 lb (233.15 kg)
- Engine Hour Meter
- 4 Position Output Range Selector
- Circuit Breakers
- 120 Volt AC Receptacles (NEMA 5-20R)
- Output Stud Covers
- Ground Stud
- 120/240 Volt AC Full KVA Receptacle (NEMA 14-50R)
- Fine Output Control
- Engine Choke Control (Stainless Steel Cable)
- Engine Start Switch with Idler Control
|Lincoln GFCI Receptacle Kit
|Lincoln Spark Arrester Kit
|Lincoln Accessory Kit - 400 AMP
|Lincoln PTA--26V TIG Torch (25 ft, 2 pc)
|Lincoln Square Wave TIG 200 TIG Welder
|Lincoln Tomahawk 1000 Plasma Cutter
|Lincoln Power MIG 180C MIG Welder
You Might Like
Lincoln Has The Power You Need
Work for the heavy industry has a variety of challenges that need to be overcome depending on the job. One of the most prevalent, especially for people that are venturing out into an area previously uninhabited by humans, is to still be able to create the components or structures you need without access to the traditional environment or structure that tools and equipment need to run. Putting up a building in a vacant area, for example, means no access to the electricity vital to tools.
However, in order for the job to get done, those tools and other equipment need access to the type of power that is normally provided in a safe, climate-controlled environment such as a workshop. That’s obviously impossible under certain conditions, such as building a marine facility offshore, or even putting up new buildings in areas where no one has lived before. That’s why for welders in this situation, a welding generator is a must have.
A Century of Service
Lincoln Electric has played an important role in American heavy industry for over 100 years. In that time, the company has worked closely with the people who actually do the work, the skilled tradesmen, talking to them, watching them in action and looking at the ways a job gets done to develop new tools and techniques to improve the way people work. This has meant innovation in everything from the tools used, to the protective gear people wear.
They’ve taken that same approach with welding generators. There may come a time, such as on large, spacious farms, or simply out in the wild, where welding work needs to be done, but there isn’t any electricity available. It’s a real challenge for tradesmen that are being relied upon in such situations as experts, and the only way they can deliver satisfactory results is with the tried and tested tools they normally use. These tools need electricity that is constant, safe and reliable, and a Lincoln Welding Generator is all of these things.
The Lincoln Ranger 225 Welder Generator is built to meet two needs, durability, and reliable performance. The welding generator is completely enclosed for protection, but small enough to fit on the bed of a pick-up for easy transport. It can also be mounted to a trailer or an all-terrain undercarriage if that’s what you need. In addition to powering welders, it also acts a generator for additional lights or heating, with up to 9000 watts of continuous power.
As a welding generator, the Lincoln Ranger 225 is perfect for MIG, TIG, and even Flux welding if you get the right optional attachments. In CC mode, the Ranger 225 provides 225 amps of power. If you’re using it in CV mode, it puts out 200 amps of power. It uses a 23 HP Kohler engine, with a 12-gallon gas tank. It definitely has all the features you need to get the job done.
