ESAB Rebel EMP 285ic Multiprocess Welder





Boasting a 5 to 300 Amp range, this machine has the power to do it all! Not only can this machine run MIG, Stick, AND TIG processes, but it can do so with the best of them, including single process machines! If ESAB didn't have your attention before, you might want to take a look now.





True Multi-Process

  • Excellent performance on MIG, Flux-Cored, TIG and Stick industrial applications



Power to Perform

  • 285A @ 40% with 1-Phase Model
  • 285A @ 50% with 3-Phase Model
  • You will have the confidence to run the full range of .045" (1.2 mm) wire - short arc and spray transfer with increase deposition rates and productivity on smaller diameter wires such as .030" (0.8 mm) and .035" (0.9 mm)



4 Roll Drive System

  • Weld to .052" (1.4 mm) solid wire and up to 1/16" cored wire
  • Welds rods up to 5/32"  (4.0 mm)
  • Weld TIG rods up to 3/16"



Unmatched Portability/Mobility

  • Weighing in at 70 lbs with multi-voltage, multi-phase capable and 4 handle roll cage
  • Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site



TFT Multilingual Display

  • Packed full of features, Rebel EMP 285ic has 4 programable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting
  • Gives you the ability to fine tune your welds for the most optimal performance



sMIG Technology

  • Innovative "Smart-MIG" feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc
  • Set diameter and plate thickness and you are ready to weld

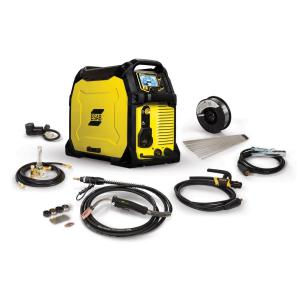

  • Power Supply
  • Tweco Spray Master Velocity MIG Gun
  • Electrode Holder
  • Atom Arc 7018 Electrodes
  • Victor Argon Flowmeter Regulator
  • 12.5' (3.8 m) Hose
  • Return Clamp with Leads
  • Drive Rolls & Contact Tips
  • .035" (0.9 mm) Wire
  • Operators Manual





MAXIMUM OUTPUT
  • 300A / 34V (1ph)
  • 350A / 34V (3ph)
PRIMARY VOLTAGE
  • 120 - 240 VAC (1ph)
  • 460 - 575 VAC (3ph)
MIG WELDING OUTPUT
  • 285A / 28V @ 40% Duty Cycle (1ph)
  • 220A / 25V @ 60% Duty Cycle (1ph)
  • 160A / 22V @ 100% Duty Cycle (1ph)
  • 285A / 28V @ 50% Duty Cycle (3ph)
  • 265A / 27V @ 60% Duty Cycle (3ph)
  • 200A / 24V @ 100% Duty Cycle (3ph)
STICK WELDING OUTPUT
  • 260A / 30V @ 40% Duty Cycle (1ph)
  • 210A / 28V @ 60% Duty Cycle (1ph)
  • 135A / 25V @ 100% Duty Cycle (1ph)
  • 285A / 31V @ 50% Duty Cycle (3ph)
  • 255A / 30V @ 60% Duty Cycle (3ph)
  • 180A / 27V @ 100% Duty Cycle (3ph)
TIG WELDING OUTPUT
  • 285A / 21V @ 40% Duty Cycle (1ph)
  • 240A / 19V @ 60% Duty Cycle (1ph)
  • 185A / 17V @ 100% Duty Cycle (1ph)
  • 285A / 21V @ 50% Duty Cycle (3ph)
  • 265A / 21V @ 60% Duty Cycle (3ph)
  • 220A / 19V @ 100% Duty Cycle (3ph)
CURRENT RANGE
  • 5 - 300A (1ph)
  • 5 - 350A (3ph)
MIG WELDING VOLTAGE RANGE 12 - 34 V
WIRE FEED SPEED RANGE 60 - 800 ipm (1.5 - 20.3 m/min)
NOMINAL OCV VOLT/DC 68 VDC
MAXIMUM PLATE THICKNESS 1/2" (13 mm)
WIRE DIAMETER RANGE
  • Mild Steel: .023" - 0.52" (0.6 - 1.3 mm)
  • Stainless Steel: .030" - .052" (0.8 - 1.3 mm)
  • Aluminum: .030" - 1/16" (0.8 - 1.6 mm)
  • Flux Cored: .030" - 1/16" (0.8 - 1.6 mm)
WIRE SPOOL SIZE 4, 8 & 12 (100, 200 & 300 mm)
APPROVALS
  • CSA E60974-1-00
  • UL60974-1
  • IEC 60974-1
PROTECTION CLASS IP23S
POWER SOURCE DIMENSIONS 26.5" x 11.5" x 19.5" (673 x 292 x 495 mm)
POWER SOURCE WEIGHT 70 lbs (31.7 kg)
SUPPLY VOLTAGE RANGE 90 - 270 VAC
NUMBER OF PHASES
  • 1-Phase
  • 3-Phase
SUPPLY PLUG
  • 1-Phase: NEMA 6-50P (230 V)
  • 3-Phase: No plug for 3ph unit
LEAD CORD LENGTH 10' (3 m)
