Lincoln K1845-1 Invertec V160-T TIG Welder





*TIG Torch Not Included With This Machine*  *Must have PTA-9 or PTA-17 TIG Torch with this machine*

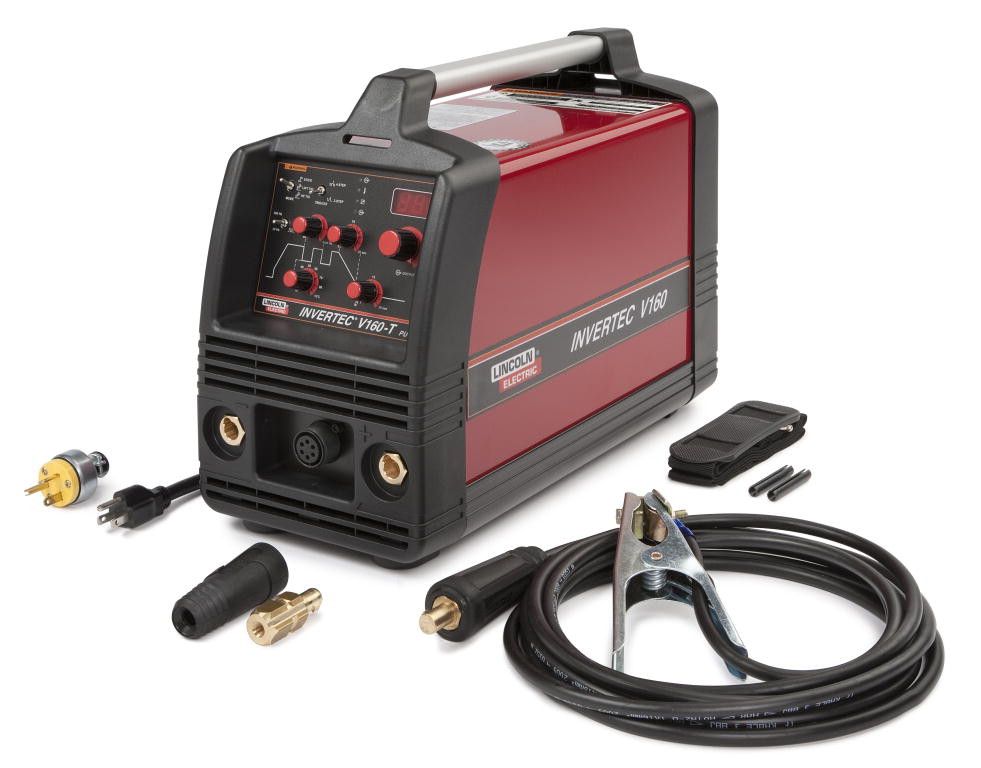

The Lincoln Invertec V160-T is a small but rugged, high-performance DC TIG and Stick welder designed for alloy fabrication, process piping, or critical maintenance work. Weighing in at a portable 24 pounds, the machine automatically connects to 120V or 230V service and features simple torch connections that provide for quick changeover from TIG to Stick welding.



Input Power

  • 115/230/1/50/60



Processes

  • Stick, TIG, Pulsed





PULSE CONTROL

  • Built in pulsing function help minimize heat input on thin materials, and provide for a faster freezing weld puddle for uphill welding on curved surfaces such as process piping
  • The TIG pulser also helps moderate metal deposition for consistent bead appearance



HIGH-FREQUENCY TIG STARTING

  • Makes it easy to establish an arc under a variety of conditions
  • Enhances quality by minimizing the potential for weld contamination created by tungsten inclusions in the weld



IDEALLY SUITED FOR EXTERNAL OPERATIONS

  • The Invetec V160-T's light-weight and adjustable shoulder strap enable welding in the field





INPUT POWER 115/230/1/50/50
RATED OUTPUT 90A/14.6V/100% TIG   60A/22.4V/100% Stick
110A/14.4V/100% TIG   80A/23.3V/100% Stick
130A/15.2V/100% TIG   130A/22.2V/100% Stick
INPUT CURRENT 20A
25A
20A
OUTPUT RANGE 5-160A DC
DIMENSIONS (H X W X D) 13" x 8" x 17" (330 x 203 x 432 mm)
NET WEIGHT 33 lbs (14.97 kg)





  • 115V Input cord (10') and Plug (NEMA 5-15P)
  • 20 Amp Plug (NEMA 5-20P)
  • Twist-Mate™ Torch Adapter for PTA-9 or -17 One-piece torch
  • Fully Adjustable Shoulder Strap
  • Work Clamp and Cable
