  • Lincoln K2535-2 Precision TIG 225 TIG Welder w/ Ready Pak and Cart
  • Lincoln K2535-2 Precision TIG 225 TIG Welder w/ Ready Pak and Cart

Lincoln K2535-2 Precision TIG 225 TIG Welder w/ Ready Pak and Cart

$ 3,094.00

Quantity


Pin It

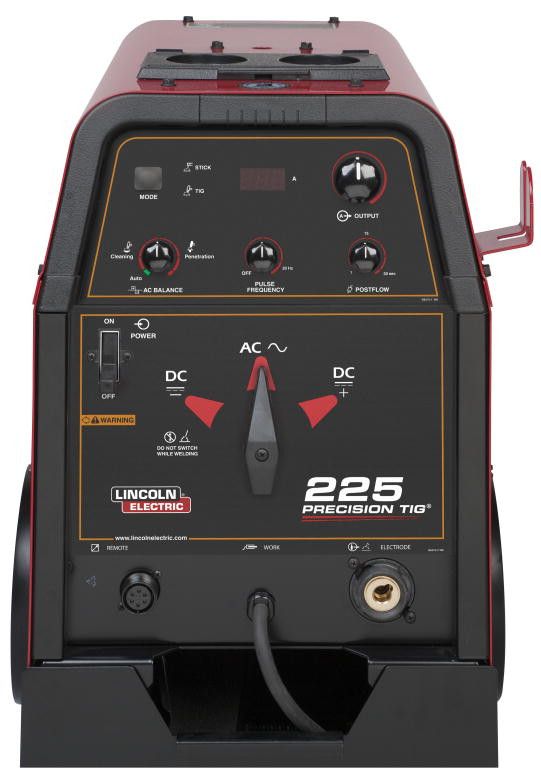

Lincoln K2535-2 Precision TIG 225 TIG Welder w/ Ready Pak and Cart



Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Mirco-Start II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools



Simplicity

  • Easy-to-use operator interface - select mode, polarity and begin welding
  • When welding aluminum, AC Auto Balance automatically provides for the optimal mix of cleaning and penetration



Adjust for Any Situation: Cleaning, Penetration, and Pulse

  • When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control
  • Enable the TIG pulser feature to minimize material distortion from excessive heat input
  • The TIG pulser can also help moderate filler metal deposition from consistent bead appearance



Superior Stick Welder

  • Also offers outstanding stick welding capabilities, including the use of up to 5/32" (4.0 mm) electrodes - even with Fleetweld 5P+ (E6010)





Input Power

  • 208/230/1/60

Processes

  • Stick, TIG
INPUT POWER 208/230/1/60
RATED OUTPUT
  • 130A/40%
  • 110A/60%
INPUT CURRENT
  • 40% Duty Cycle: 61/55
  • 60% Duty Cycle: 52/47
OUTPUT RANGE
  • 5-230A AC
  • 5-230A DC
  • Max OCV: 75V
DIMENSIONS (H X W X D) 31.2 in x 19.8 in x 38 in (794 mm x 503 mm x 966 mm)
NET WEIGHT 261.000 (118.390 kg)
  • Torch Parts Storage Compartment
  • Torch Hanger
  • 10 ft. (3.0 m) Work Cable & Clamp
  • Removable Lift Eye
  • 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
  • NEMA 6-50R Receptacle
  • TIG Procedure Guide
  • GTAW (TIG) Handbook
  • PTA-17 150 amp TIG torch w/ 1 pc. cable12 ft. (3.6 m) Ultra-Flex™ Cable
  • Twist Mate™ Adapter
  • 3/32 in. (2.4 mm) 2% Ceriated Tungsten
  • Collet & Collet Body
  • 7/16 in. (11.1 mm) Alumina Nozzle
  • Long Back Cap
  • Gas Regulator with Hose
  • Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)
  • Understorage Cart (K2348-1)

View More

Lincoln Welder for Peace of Mind


Doing work in the heavy industry often means putting your physical safety in the hands of the equipment you’re using. After all, when you use something like a welder, there are a lot of things that need to come into play. The helmet you use needs to protect you from the light that can otherwise be blinding. The safety clothing you wear should shield you from heat and sparks, and of course, the welder you’re using should “just work,” and not be a source of problems or worry.

This applies to any kind of welding, from the big jobs on offshore marine facilities to the work in a small shop, or even a personal project, like metal sculpture. Welding Isn't easy, but when you’ve got everything you need and you’re following all the safety and procedural guidelines, things should work according to plan. That’s something that Lincoln has spent a lot of time with all of their products, including their 225 TIG Welder with Ready Pak.

Lincoln Precision Tig 225 Works for America


Lincoln Electric has over 100 years of partnership, participation and hard work put into the heavy industry of the USA. It’s thanks to this company that some welding techniques like the ductile weld came into being, and Lincoln was there “in the trenches” helping out America’s defense welding the ships that eventually went out to sea and represented the nation’s naval strength in times of war.

In the 21st century, Lincoln Electric continues to work hard both for the industry itself, and the men and women that work within it, using their tools and equipment to get the job done. No matter what the level of work that is required, safety, efficiency and reliability are always Lincoln watchwords, and that applies to all of their products, including the Precision 225 TIG Welder with Ready Pak.

Getting Started the Right Way


For smaller shops and vocational training schools, the Lincoln K2535-1 Precision 225 TIG Welder is a great piece of hardware to use. It has the widest operating range in its class from 5-230 amps with enhanced starting and optimal arc stability. With Lincoln’s Micro-Start II technology, users can also get more precise welds and crater fills. It’s even built with a 115v receptacle that can be used to power water coolers or other power tools that might be needed for a particular job.

The Precision 225 TIG welder is easy to use with an interface that includes select mode, polarity and weld. If you’re working with aluminum, it includes an AC Balance system that automatically adjusts for an optimal mix of cleaning and penetration. It also has a TIG pulser to minimize material distortion from excessive heat input. If you’re interested in doing Stick or TIG welding, this is the unit that acts like a nearly “complete” package to get you started.

Great Prices, Quick Shipping


For anyone that knows they can benefit from owning the Lincoln Precision 225 TIG welder, we can have the order sent to any door in the continental United States. It’ll arrive safe and sound, with a short wait time thanks to the alliances we have with established, top-notch shipping partners. And don’t worry about the cost of shipping and handling. We’ll handle that expense ourselves as our way of showing our appreciation for your support of a proud American business.
