Lincoln K2806-1 Tomahawk® 375 Air Plasma Cutter

$ 1,699.00

Quantity


Pin It

Lincoln K2806-1 Tomahawk® 375 Air Plasma Cutter





PLASMA CUTTING - ANYWHERE, ANYTIME


The Tomahawk® 375 Air plasma cutting system arrives ready to go or fast and precise cutting. With the 375 Air, forget the grinder - simply pick up the torch and cut in seconds.



Input Power:

  • 208/230/1/60



Processes:

  • Plasma cutting for mild steel, stainless steel, aluminum, brass, copper





ULTIMATE PORTABILITY

  • Internal air compressor enables operation in environments where external compressed air is not available


CONTINUOUS OUTPUT CONTROL

  • Focus the arc for different material thickness


TORCH START SYSTEM

  • Reliable plasma arc initiation without high frequency



RAPID ARC RESTRIKE

  • Fast cutting through gaps, even expanded metal



FRONT PANEL PURGE CONTROL

  • Makes it easy to set the air flow rate without initiating the plasma arc



COOL OPERATION, LONG CONSUMABLE LIFE

  • New electrode and nozzle design save you money in the long run



ADDED SAFETY

  • Lincoln's Parts-in-Place system detects correct installation of consumables and torch



ENGINE DRIVE COMPATIBLE

  • Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations





INPUT POWER 208/230/1/60
RATED OUTPUT 13A@85.2V 100%
18A@87.2V 60%
INPUT CURRENT 21.7A
OUTPUT RANGE 10-25A
DIMENSIONS (H X W X D) 15.2" x 8.5" x 18.9" (385 x 215 x 480 mm)
NET WEIGHT 40 lbs (18.14 kg)
PILOT CURRENT 17A
AIR PRESSURE REQUIRED 80 - 110 psi
(6 - 7.5 bar)
AIR FLOW RATE 70 psi @ 125 - 200 SCFH
5 Bar @ 80 Liters / min.

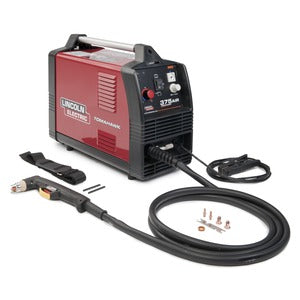

  • Internal air compressor (external air connection also standard)
  • LC25 hand torch and 10 ft. (3 m) cable with electrode, nozzle 25A, swirl ring, retaining cup, drag spacer
  • Air regulator and pressure gauge
  • Internal water separator
  • Work clamp and cable
  • Spare consumables include (2) electrodes, (2) nozzles 25A, (1) swirl ring
  • Shoulder strap
  • Input power cord





 CATEGORY PRODUCT NUMBER PRODUCT NAME
General K2886-1 Lincoln Tomahawk Plasma Circle Cutting Guide
General K2377-1 Lincoln Canvas Welder Cover - Small
