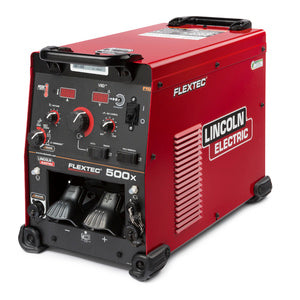

Lincoln K3607-1 Flextec® 500X Multi-Process Welder





POWERFUL PERFORMANCE FROM THE GROUND UP



Out in the shipyards, construction sties and fabrication shops, it pays to keep it simple. The Flextec 500X multi-process welder is easy to set up and operate, yet rugged enough to stand up to heavy-duty indoor and outdoor applications.



Basic pulse MIG capability is standard on the Flextec 500X, including weld modes for carbon steel, stainless steel, aluminum and metalcore electrodes.



The Flextec 500X welder is also equipped with CrossLinc® technology giving you the flexibility to control the machine from hundreds of feet away without a control cable.



Input Power

  • 380/460/575/3/50/60



Processes

  • SMAW, GTAW, GMAW, GMAW-P, FCAW, Arc Gouging





SIMPLE

  • Simple interface for ease of use
  • CrossLinc technology eliminates extra cables for simple system setup



RELAIBLE

  • IP 23 rating means the Flextec 500X welder will excel in outdoor environments, such as construction sties and shipyards
  • Flextec 500X welder is Desert Duty® rated for operation in the harshest environments (up to 55C)
  • Durable trayed and potted PC boards for electronics environmental protection



FLEXIBLE

  • Multi-process power source for all your welding needs
  • Compatible with all 42VAC wire feeders for MIG and Flux-Cored welding
  • Arclink® enabled power source provides synergic pulse modes
  • CrossLinc allows for remote control of CV and CC processes without extra cables
  • Optimized stick welding for both cellulosic and low hydrogen electrodes
  • Touch-start TIG for easy, contamination free starts without high frequency



CROSSLINC TECHNOLOGY COMPATIBILITY

  • Full functionality without control cables
  • Enables remote procedure setting at the feeder to improve weld quality
  • Increases arc time with fewer trips to the power source to adjust settings
  • Improves safety by reducing jobsite clutter





INPUT POWER 380/460/575/3/50/60
RATED OUTPUT
  • 500A/40V/60%
  • 450A/38V/100%
INPUT CURRENT
  • 39/31/31
  • 33/27/27
OUTPUT RANGE 5-500A
DIMENSIONS (H X W X D) 18.8" x 14" x 26.5" (477 x 356 x 673 mm)
NET WEIGHT 125 lbs (56.7 kg)
